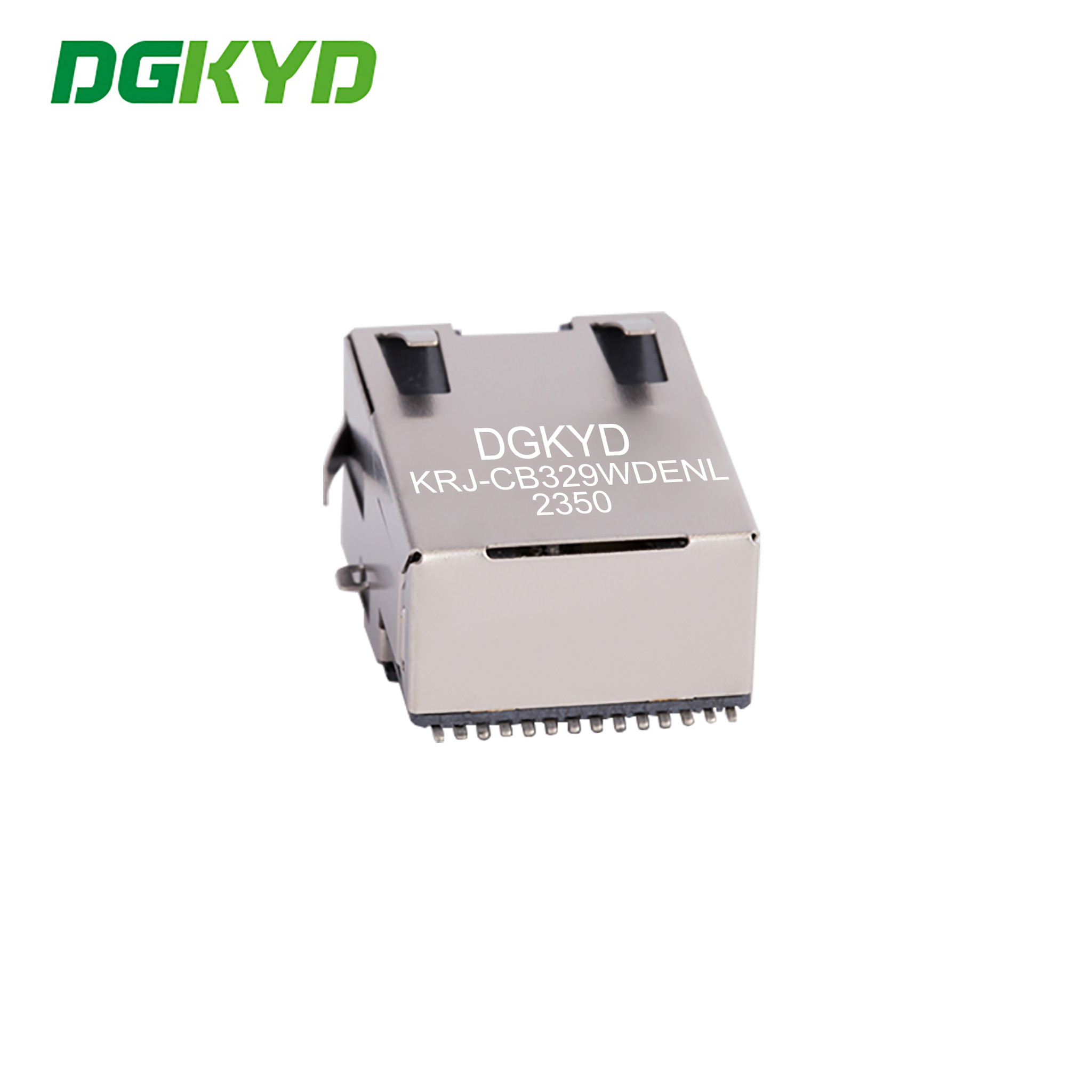

KRJ-CB329WDENL Sink Plate rj45 pcb connector Gigabit Integrated Ethernet Filter SMD

Количество мин заказа :	1 штука	Цена :	Please contact us to get the latest price.
Упаковывая детали :	Поднос в картонной коробке	Время доставки :	10 дней
Условия оплаты :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Поставка способности :	100 тыс. шт/день

Место происхождения:	Донггуан из Китая	Фирменное наименование:	DGKYD
Сертификация:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Номер модели:	KRJ-CB329WDENL

Подробная информация
Высота Rroduct:	11.35mm	Наименование продукта:	дополнительный соединитель низкопрофильного rj45
Применение:	ПХБ	Половое положение:	Женщина
Цвет светодиода:	Никаких	Контактное покрытие:	Glod покрывая 6u/15u/30u/50u
Housing Material:	Чернота LCP	фильтр:	С фильтром
Застежка:	TAB-вверх	Щит:	Экран металла
Pin:	10 пин
Выделить:	SMD RJ45 pcb connector , Gigabit Integrated RJ45 pcb connector , Gigabit Integrated rj45 Ethernet connector

Характер продукции

KRJ-CB329WDENL Sink Plate RJ45 Connector Gigabit Integrated Ethernet Filter SMD

Product Specification Document

KRJ-CB329WDENL.pdf

Parameters

Part Number	KRJ-CB329WDENL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	Without LED
LED Color	No	Panel Stops	Without Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative).
Port Configuration	Single Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	LCP Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Descriptions:

1port RJ45 SMD without LED with side entry
Single port 1X1 Tab-down heavy plate RJ45 connector with internal Magnetics
LCP black RJ45 connector board of high is 8.85mm
Suitable for CAT5&6 fast Ethernet Cable or better UTP
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating Temperature range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:14
Number of contacts loaded:8
ROHS compliant
Dimention:21.5mm*15.5mm*11.35mm
LEDS:NO
Usage:KRJ-CB329WDENL

Quick detail:

1X1 Heavy plate rj45 Tab-down

Rj45 with transformer and contact area with”6U”Gold

SMD RJ45 without led and connector board of high is 8.85mm

Length: 21.5mm

90degree
