Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB

Количество мин заказа :	Обсуждается	Цена :	Подлежит обсуждению
Упаковывая детали :	Поднос в картонной коробке	Время доставки :	7-14 дней
Условия оплаты :	Аккредитив, Документы против акцепта, Документы против платежа, Банковский перевод, Western Union, M	Поставка способности :	60000 штук в день

Место происхождения:	Донггуан из Китая	Фирменное наименование:	DGKYD
Сертификация:	RoHS/CE/FCC/CE/ISO9001/ISO14001	Номер модели:	DGKYDCB421188AB1W6SB

Подробная информация
Наименование продукта:	RJ45 соединитель Джек с экраном	Тип соединителя:	Джек.
Применение:	Компьютер, маршрутизатор, USB хаб сеть RJ45 и т.д.	Половое положение:	Женщина
Трансформатор:	RJ45 без трансформатора	ПРОФИЛЬ ВЫСОТЫ:	дополнительный низкопрофильный
Выделить:	Countersunk 4.2 SMT RJ45 Connector , RJ45 Connector Jack With Shield , Single RJ45 Connector Jack

Характер продукции

RJ45 connector single countersunk 4.2 SMD With shield With LED 8p8c

Paramters

ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40 to +85℃
GROUNDING OPTIONS	Panel Ground and PCB Ground
SHIELD PLATING MATERIAL	NICKEL
SHIELD EMI TABS	YES
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PANEL STOP	NONE
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	SMT
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
NUMBER OF PORTS	1X1
NUMBER OF CONTACTS	8
LED OPTION	L-Yellow / R-Green
LATCH ORIENTATION	LATCH DOWN
HOUSING MATERIAL	LCP UL94V-0
CONTACT MATING AREA PLATING	GOLD FLASH PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

Drawing

Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB 0

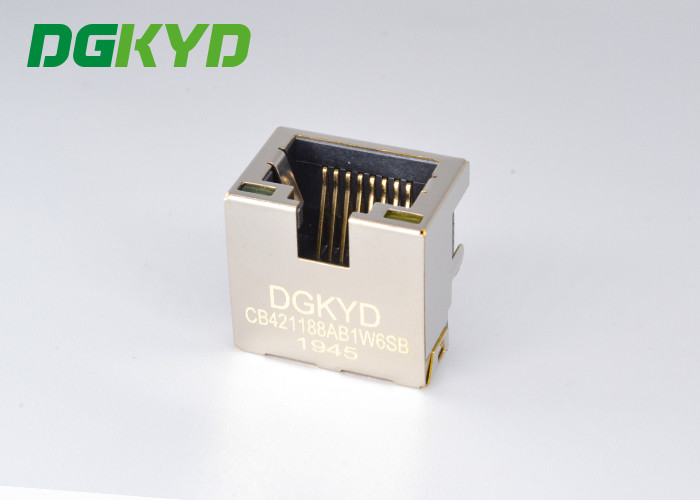

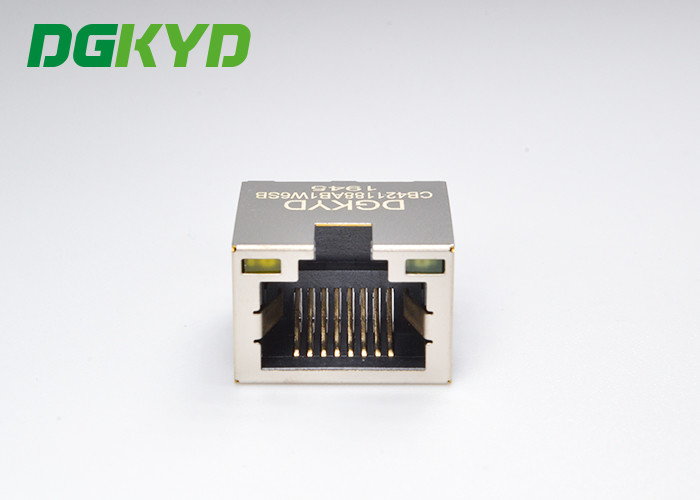

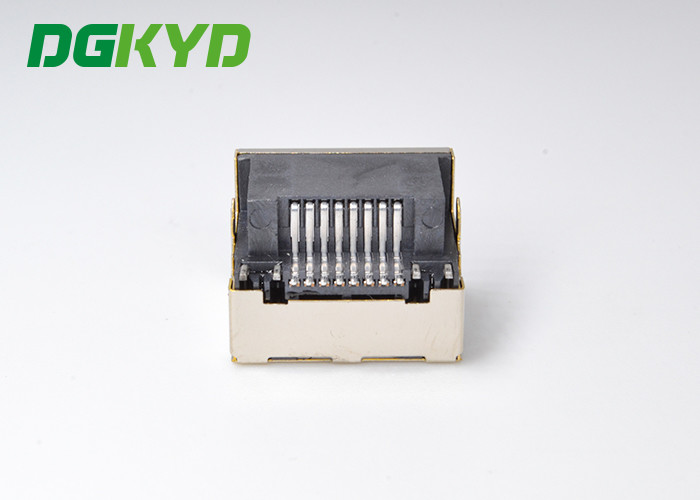

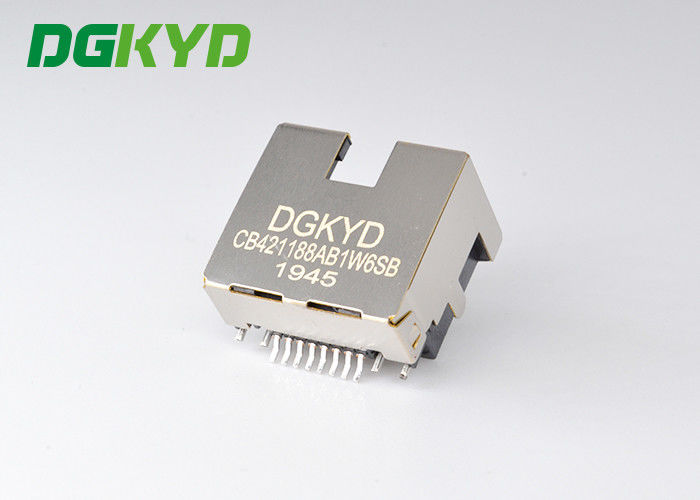

Pictures

Single Countersunk 4.2 SMT RJ45 Connector Jack With Shield DGKYDCB421188AB1W6SB 1
