Shielded Cat6 RJ45 Female Jack 6u Gold Plating Side Entry

Количество мин заказа :	1	Цена :	$1-1.60

Место происхождения:	Гуандун, Китай	Фирменное наименование:	DGKYD
Номер модели:	KRJ-300CNL

Подробная информация
Тип:	RJ45	Пол:	Женский
Золотое покрытие:	6U/15U/30U/50U для необязательного	Жилищный материал:	Полиэстер PBT
Внутренний фильтр:	Да	Стиль защелки:	Стандартный
Защелка:	Вверх	Фильтр:	С фильтром
Опция светодиодов:	Без приведенный	Экранированный:	Да
Скорость представления:	1000 базы-чем	Конфигурация порта:	одинокий
Количество позиций:	10	Терминалы в порт:	8
Материал экрана:	Медный сплав preplated с никелем
Выделить:	Shielded Cat6 RJ45 female jack , 6u gold plating RJ45 connector , side entry RJ45 single port

Характер продукции

Shielded Single Port Cat6 RJ45 Ethernet Connector - Side Entry Female Jack with LED & Internal Magnetics Transformer

High-performance shielded RJ45 connector designed for Cat6 Ethernet applications, featuring side entry configuration, LED indicator, and integrated magnetics transformer.

Product Specifications

Part Number	KRJ-300CNL
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	CE /UL/FCC/Reach/RoHS /ISO16949
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Up
Filter	With Filter
LED Option	Without LED
LED Color	N/A
Panel Stops	Without Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	1000 BASE-T
Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single
Number of Positions	10
Jack Configuration	1 x 1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

Product Images

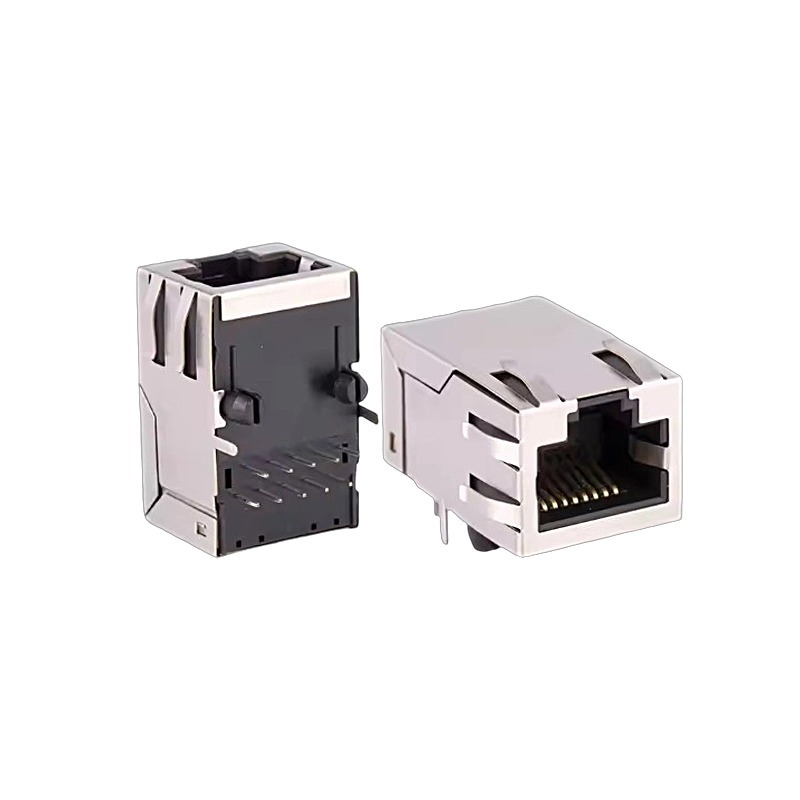

Shielded Cat6 RJ45 Female Jack 6u Gold Plating Side Entry

Shielded Cat6 RJ45 female jack

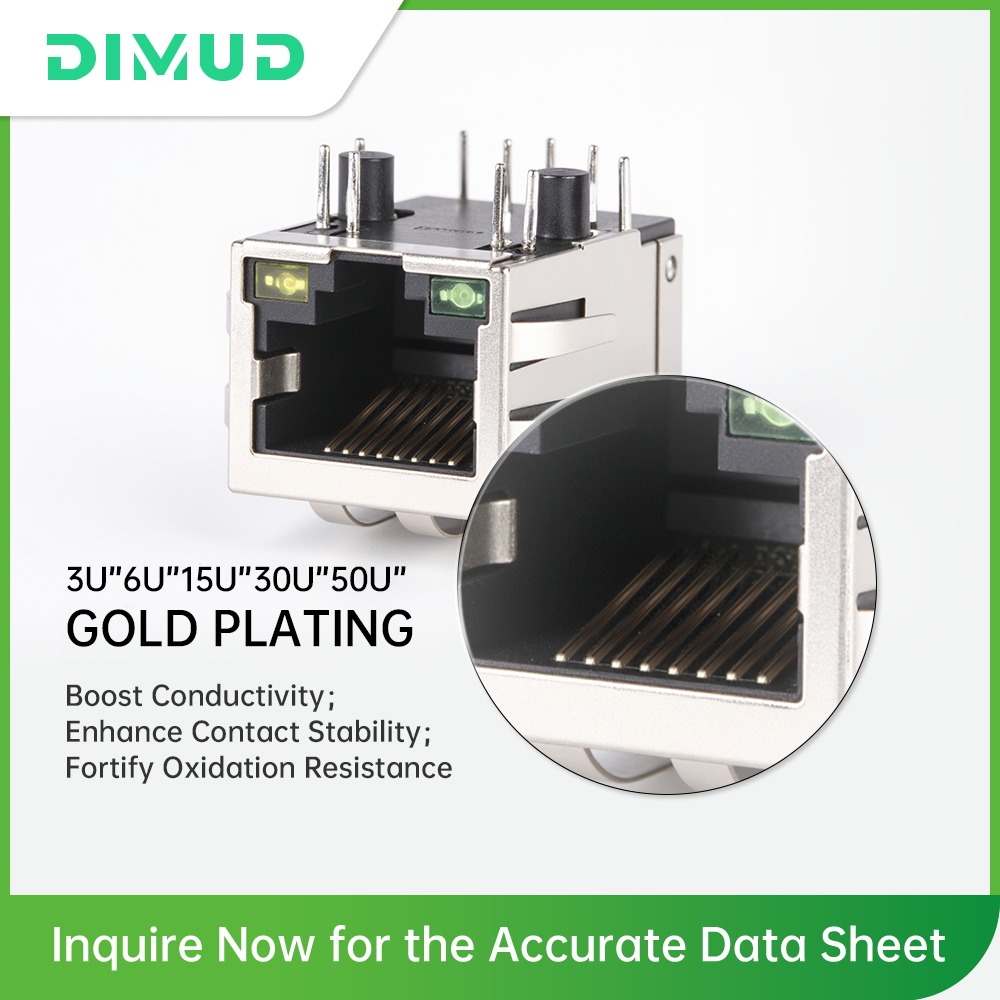

6u gold plating RJ45 connector

side entry RJ45 single port
