Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D
Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D
Контакт

Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D

Количество мин заказа : 1 кусок Цена : Please contact us to get the latest price.
Упаковывая детали : Поднос в картонной картоне Время доставки : 10 дней
Условия оплаты : T/T, D/P, D/A, L/C, Western Union, Moneygram Поставка способности : 100 тыс. ПК/день
Место происхождения: Дунгуань Китая Фирменное наименование: DGKYD
Сертификация: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Номер модели: DGKYD211Q106CD2A15D

Подробная информация
Название продукта: RJ45 Модульный домкрат Пол: rj45 сосуд
Тип: Многоконтактный rj45 magjack Приложение: волоконно -оптическая, IP -камера, DVR, DSL, модем, Wi -Fi и т. Д.
Особенность: Экранированный сетевой порт RJ45 OEM/ODM: да
Золотое покрытие на контактных булавках: 6U Рабочая температура: -40 ° C ~+85 ° C.
Температура хранения: -40 ° C ~+85 ° C. Количество позиций/контактов: 10P8C (RJ45, Ethernet)
Щит: Фосфорная медная никелевая покрытие
Выделить:

Single port RJ45 connector with transformer

,

Gigabit Ethernet RJ45 modular socket

,

RJ45 female jack with built-in filter

Характер продукции

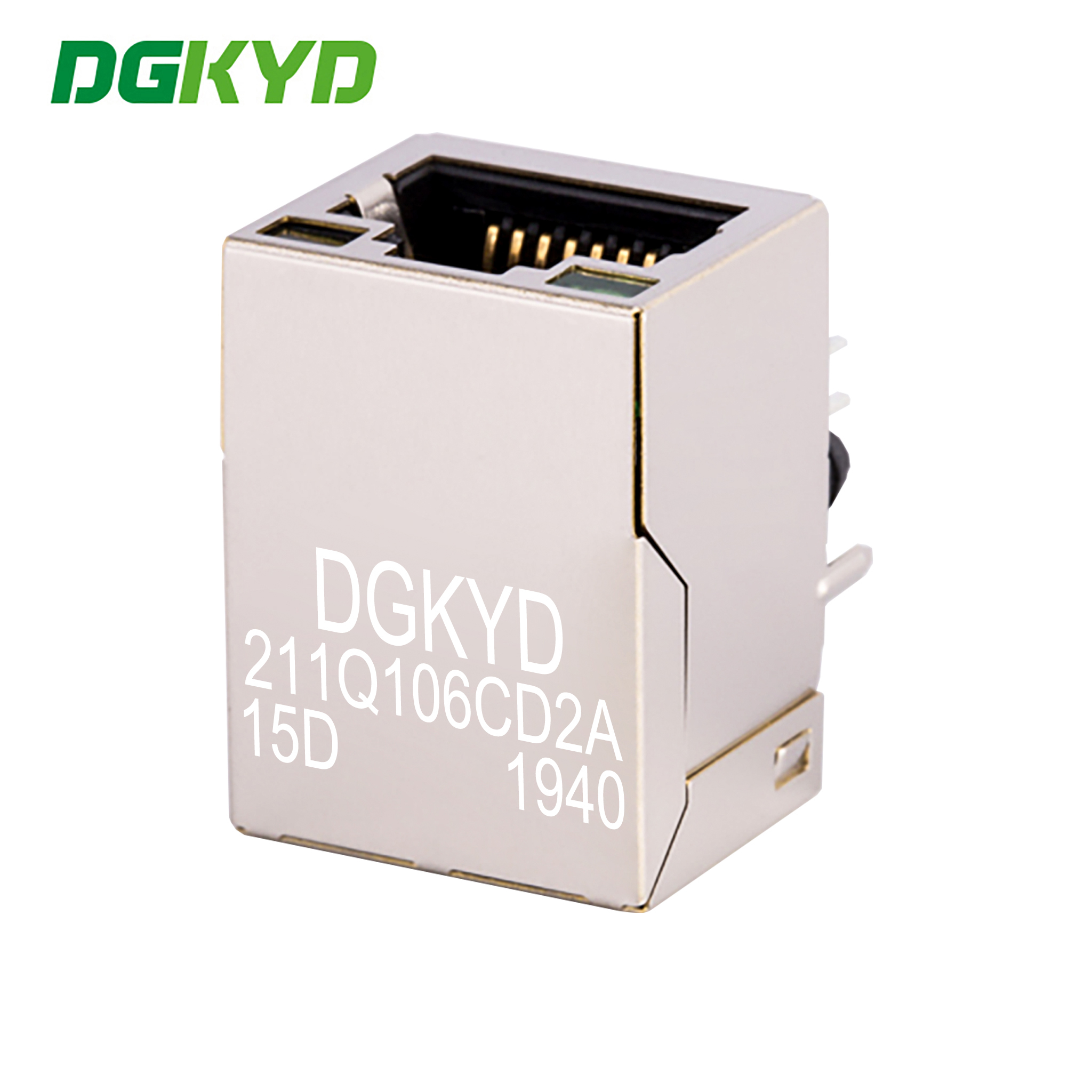

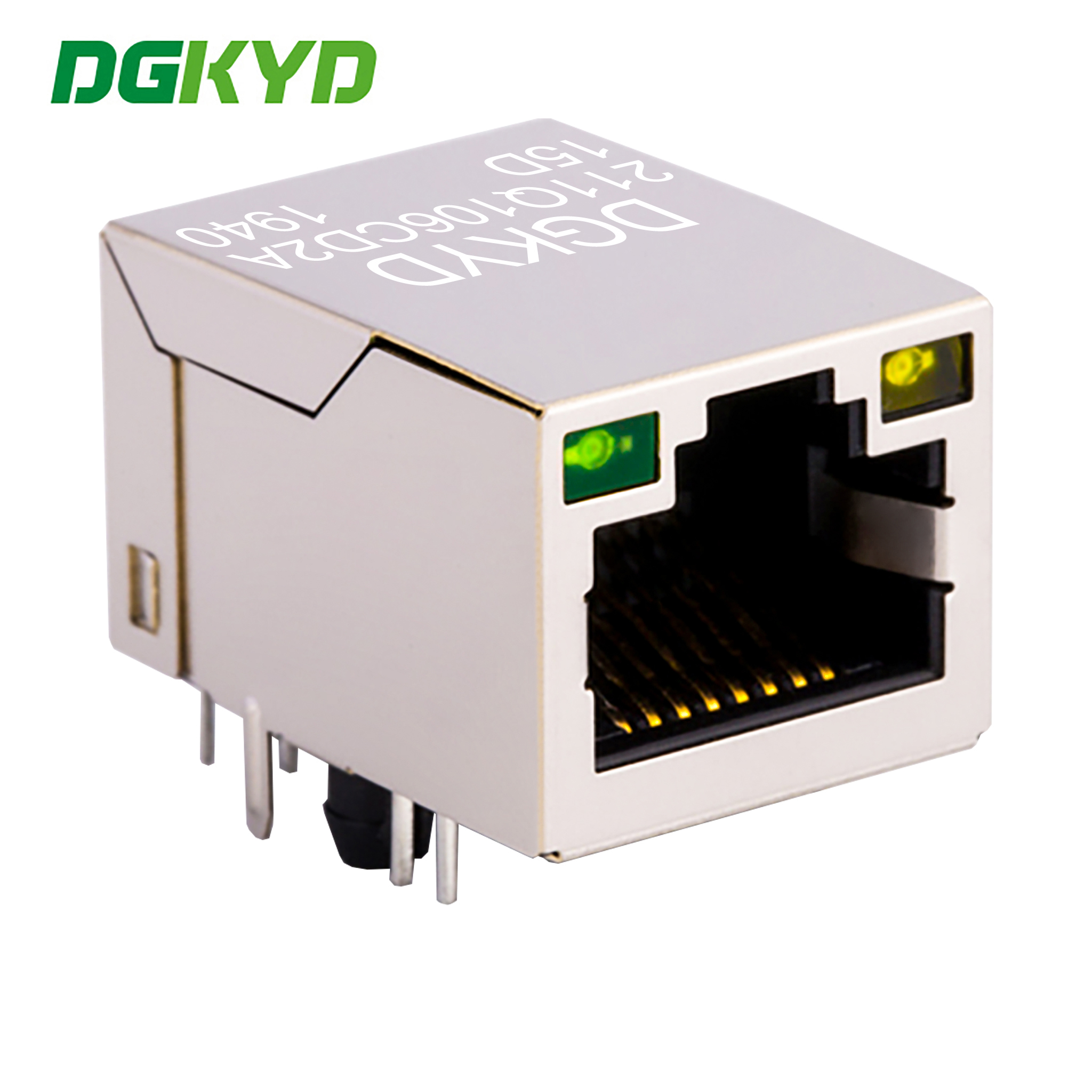

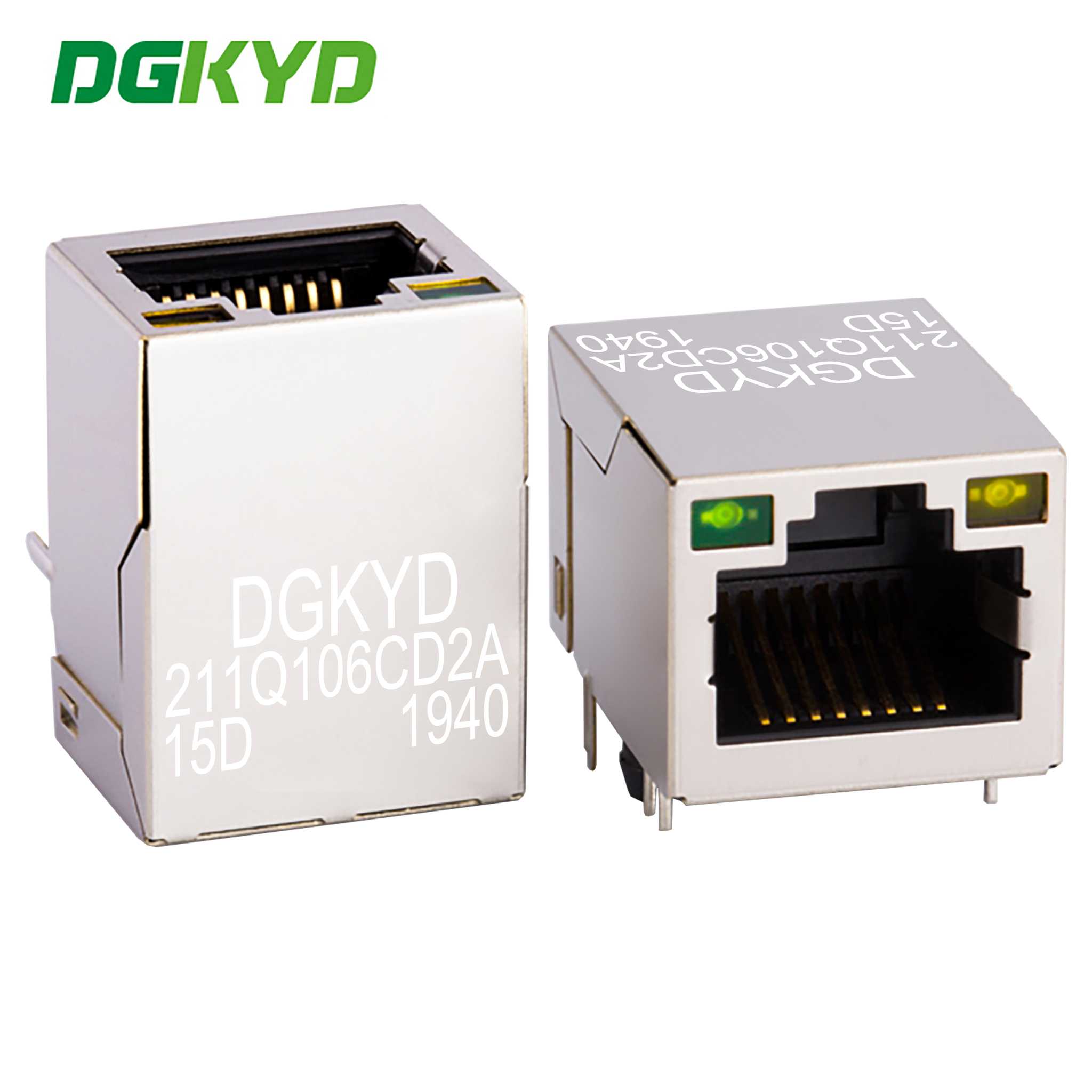

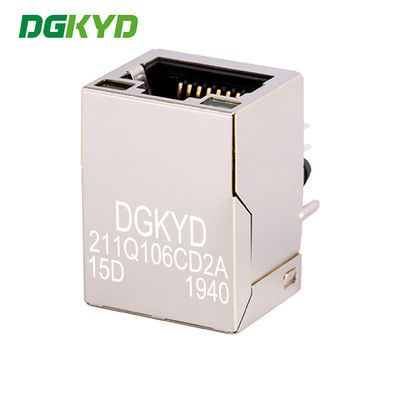

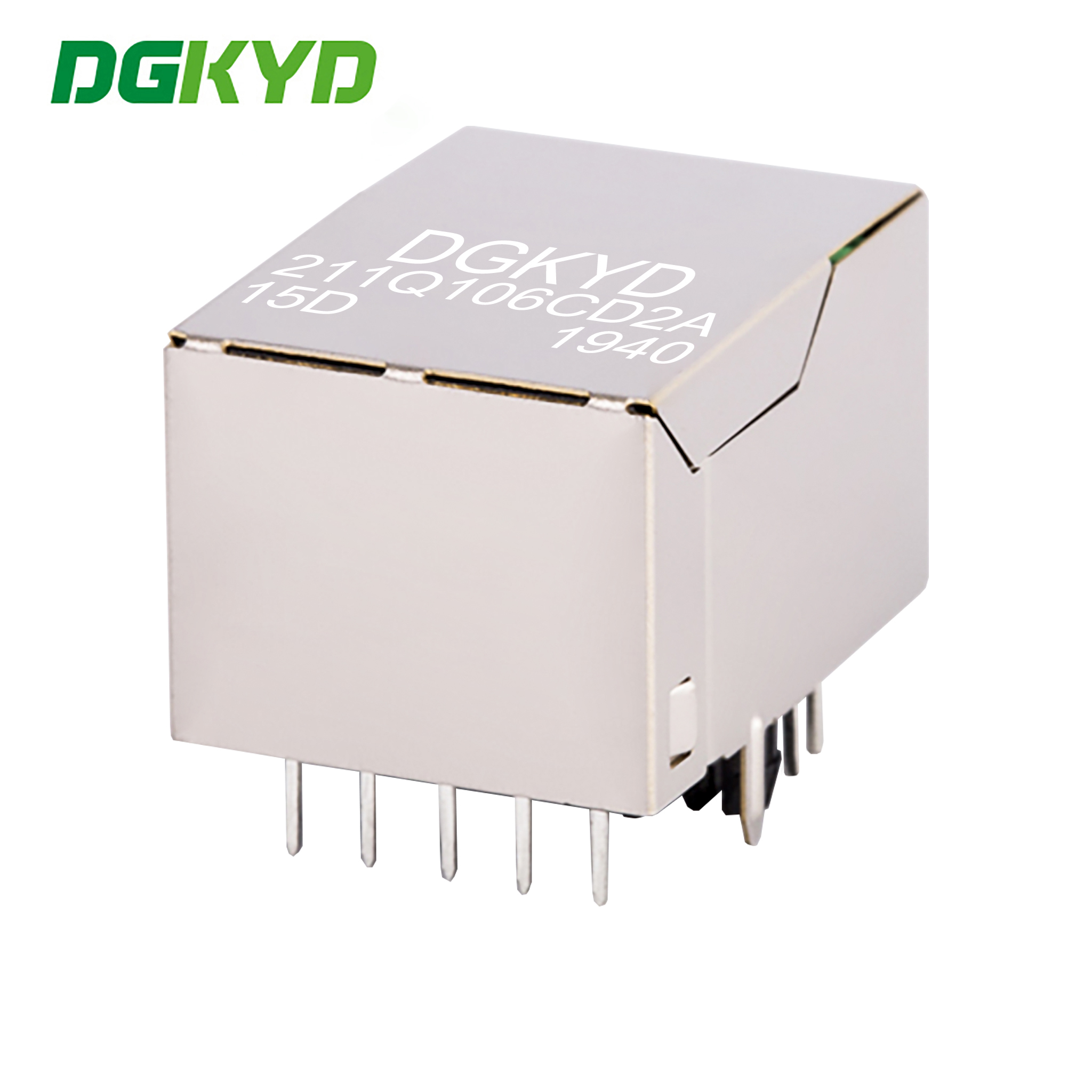

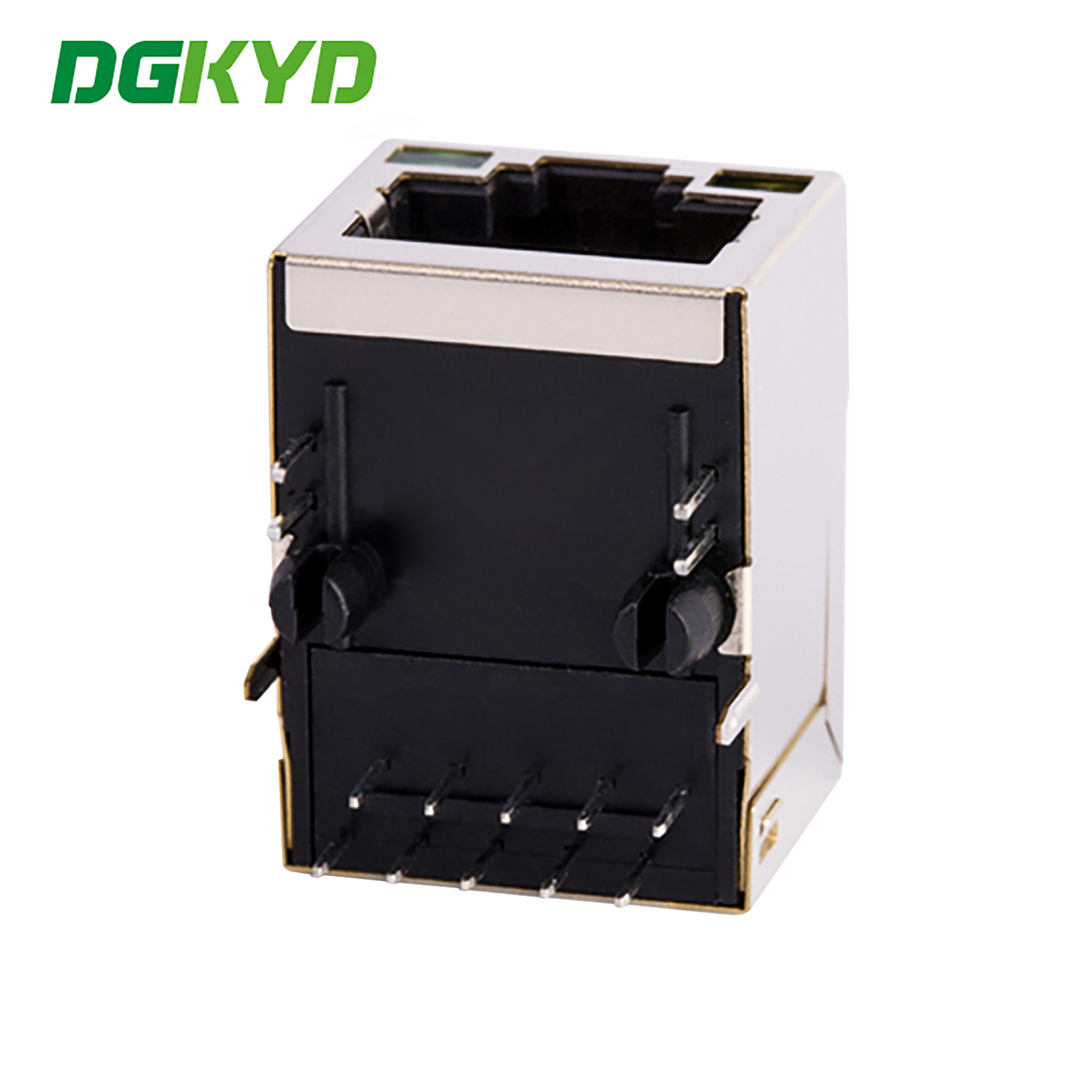

Single Port RJ45 Connector Modular Block Socket with Built-in Transformer
Product Description

Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D.

Product Specification Document

DGKYD211Q106CD2A15D.pdf

Parameters
Part Number DGKYD211Q106CD2A15D Brand DGKYD/OEM/ODM
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option With LED
LED Color Green/Yellow Panel Stops With Panel Stops
Shielded With metal shield Applies To Printed Circuit Board
Port Configuration Single Ports Number of Positions 10
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material PA9T Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0
Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 0 Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 1
Our Strengths
  • Interface type: crystal head application: 10/100/1000BASE-T Ethernet
  • Type: RJ45 built in magnetics
  • Working frequency: high frequency characteristic: filtering, anti-interference
  • Working temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

  • Business mode: Manufacturer
  • Delivery time: on time delivery, around two weeks
  • Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
  • Shield with EMI fingers or not
  • Coil ratio of magnetic core
  • Magnetics circuit diversification optional
  • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
  • Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

FAQ
Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 2 Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 3 Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 4 Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 5 Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 6 Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 7 Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 8 Single port RJ45 connector modular block socket Gigabit Ethernet filter RJ45 network port socket with built-in transformer DGKYD211Q106CD2A15D 9
