RJ45 Ethernet socket with light and shielded communication interface Metal Shielded 2X2 double deck 4 port RJ45 connectors without transfomer DGKYD59212288DB1A1DY1C022

Количество мин заказа :	1 кусок	Цена :	Please contact us to get the latest price.
Упаковывая детали :	Поднос в картонной картоне	Время доставки :	10 дней
Условия оплаты :	T/T, D/P, D/A, L/C, Western Union, Moneygram	Поставка способности :	100 тыс. ПК/день

Место происхождения:	Дунгуань Китая	Фирменное наименование:	DGKYD
Сертификация:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Номер модели:	DGKYD59212288DB1A1DY1C022

Подробная информация
Порт:	2x2	Встроенный трансформатор:	НЕТ
Стиль держателя:	Крепление печатной платы	Щит:	Фосфорная медная никелевая покрытие
ОЭМ/ОДМ:	да	Количество позиций/контактов:	8P8c (RJ45, локальные сети)
Золотое покрытие на контактных булавках:	G/Fu	Температура хранения:	-40 ° C ~+85 ° C.
Рабочая температура:	-40 ° C ~+85 ° C.
Выделить:	shielded RJ45 Ethernet socket , 4 port RJ45 connector , metal shielded RJ45 without transformer

Характер продукции

RJ45 Ethernet Socket with Light and Shielded Communication Interface

Metal Shielded 2X2 double deck 4 port RJ45 connectors without transformer DGKYD59212288DB1A1DY1C022

Product Specification

Download Product Specification Document (PDF)

Parameters

Part Number	DGKYD59212288DB1A1DY1C022	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP/DOWN
Filter	Without Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	2X2 Ports	Number of Positions	8
Jack Configuration	2X2	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold G/Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

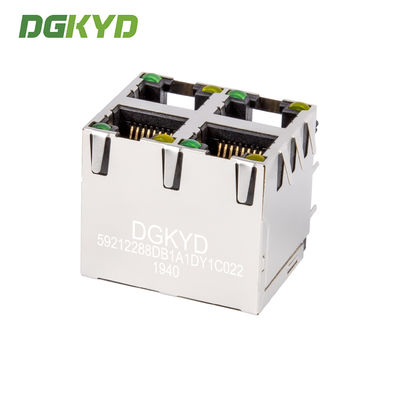

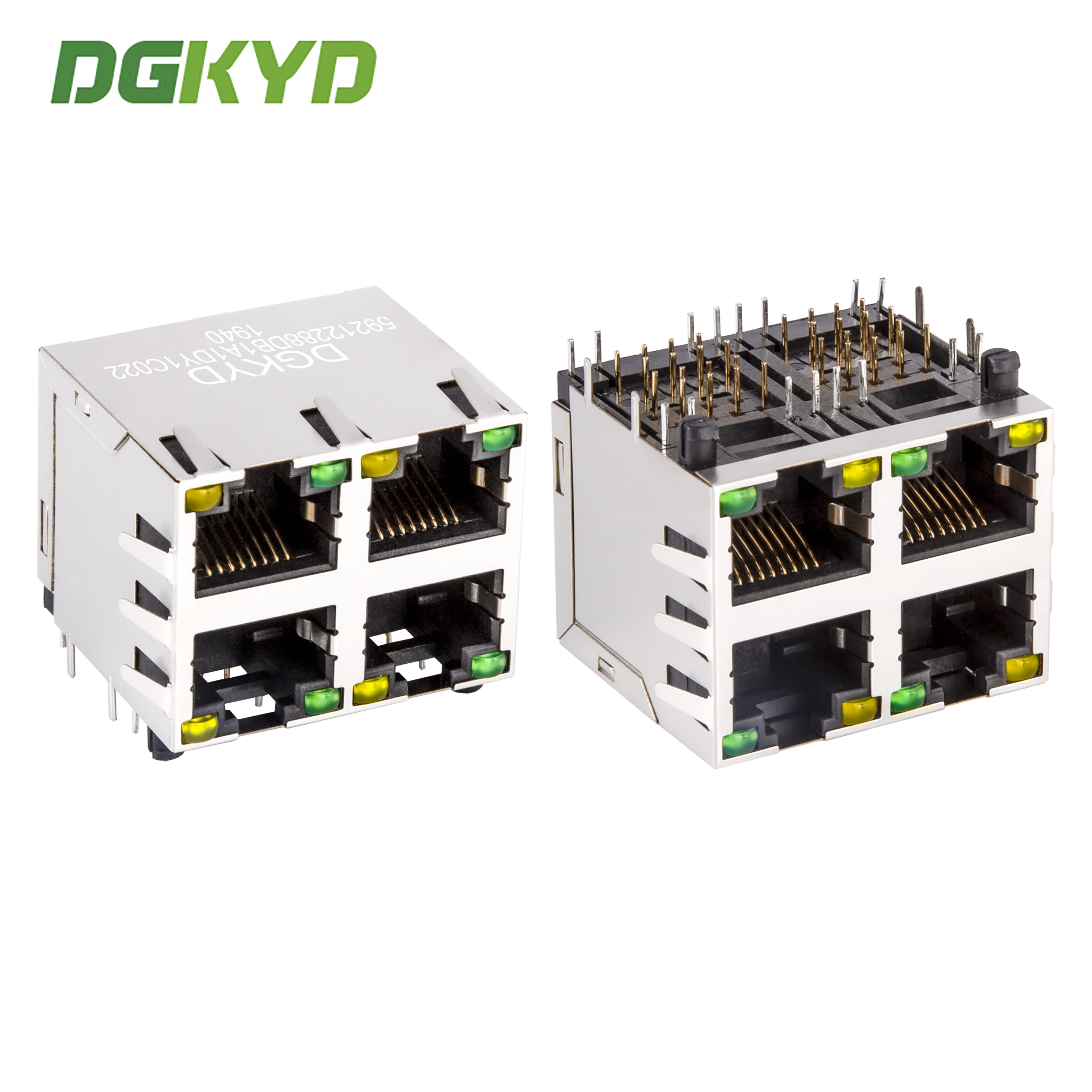

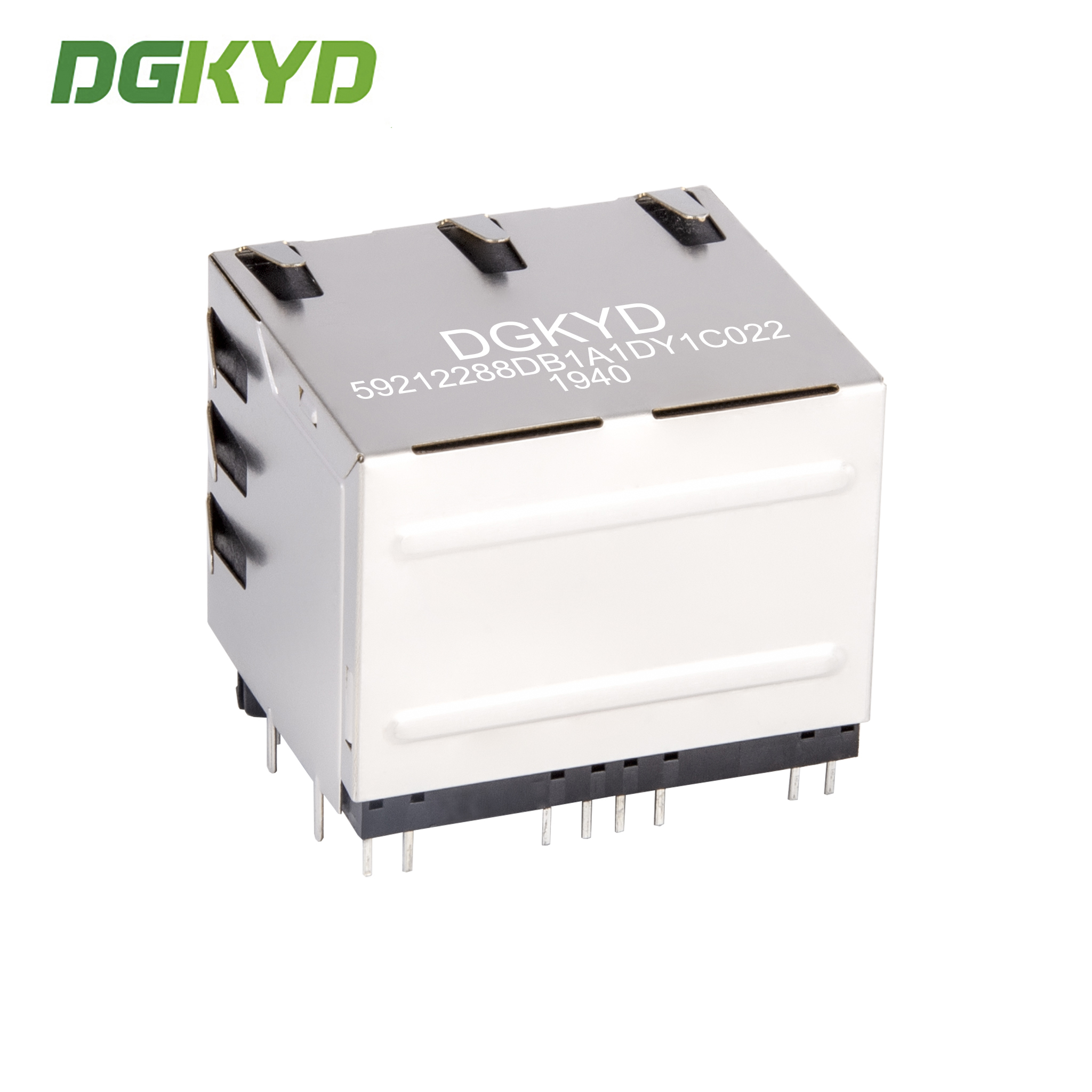

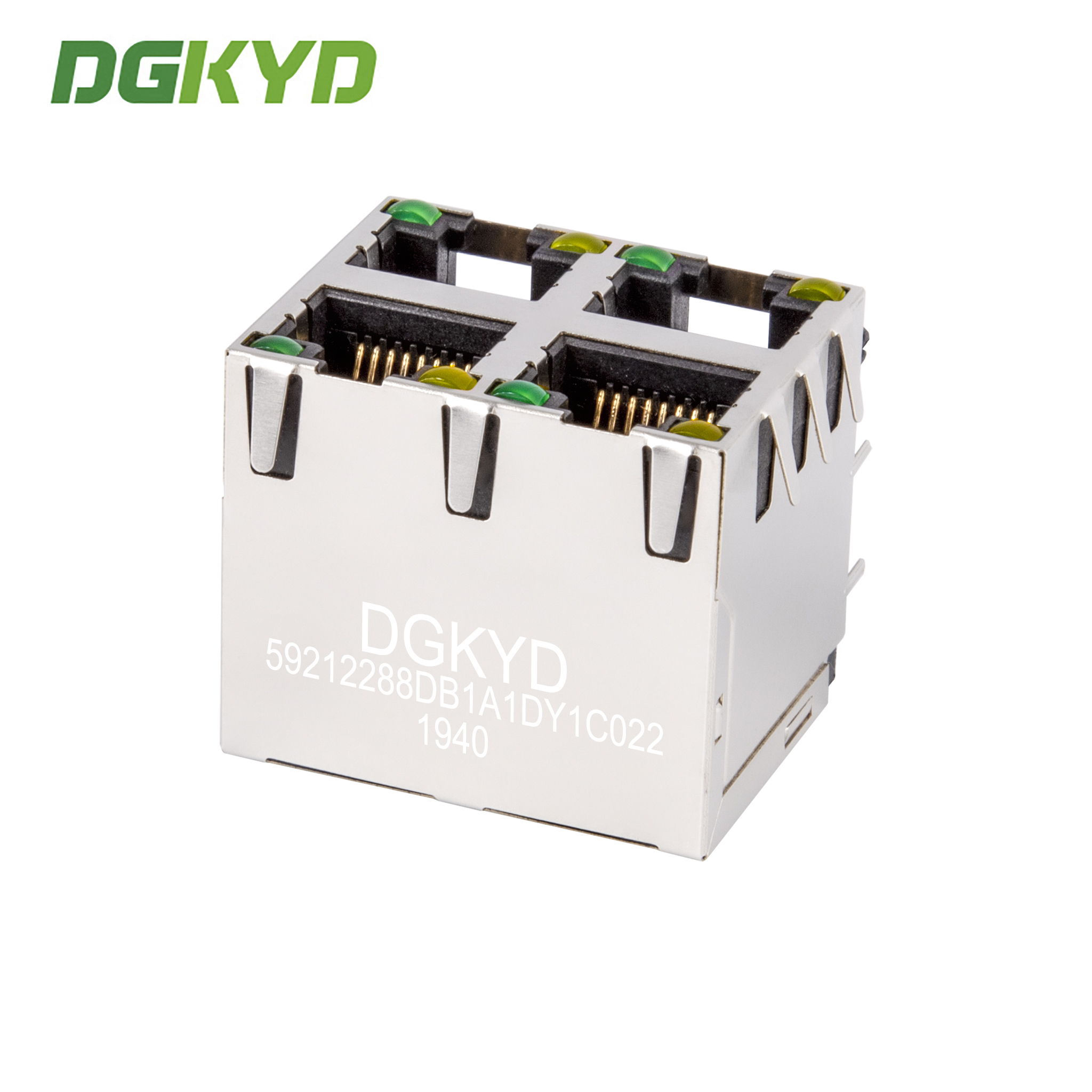

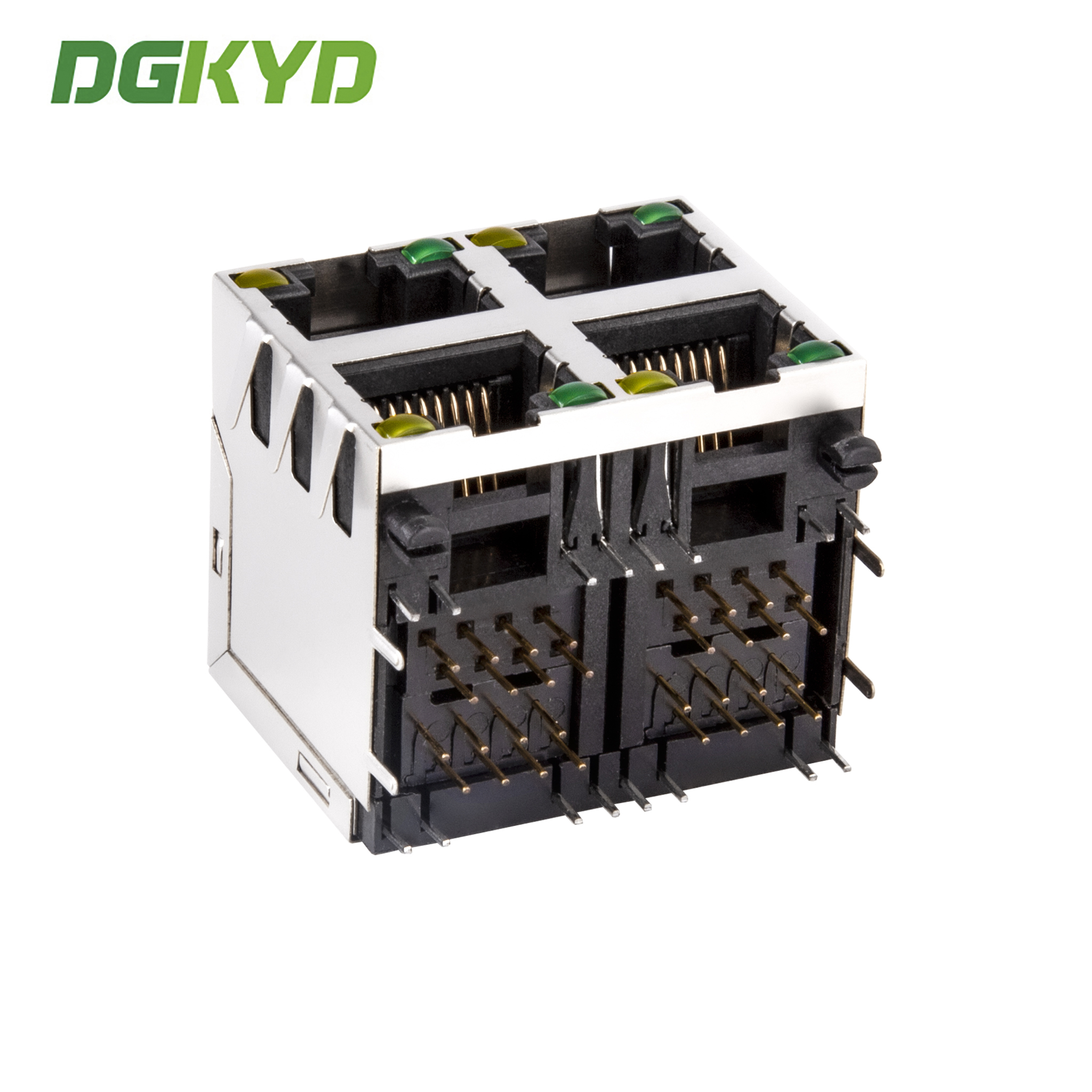

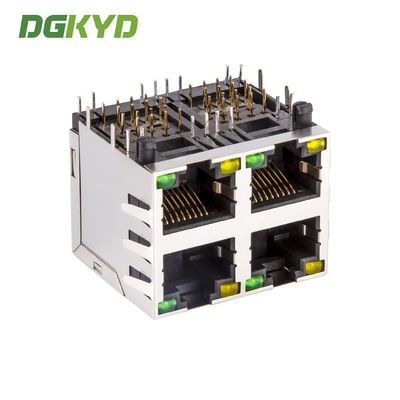

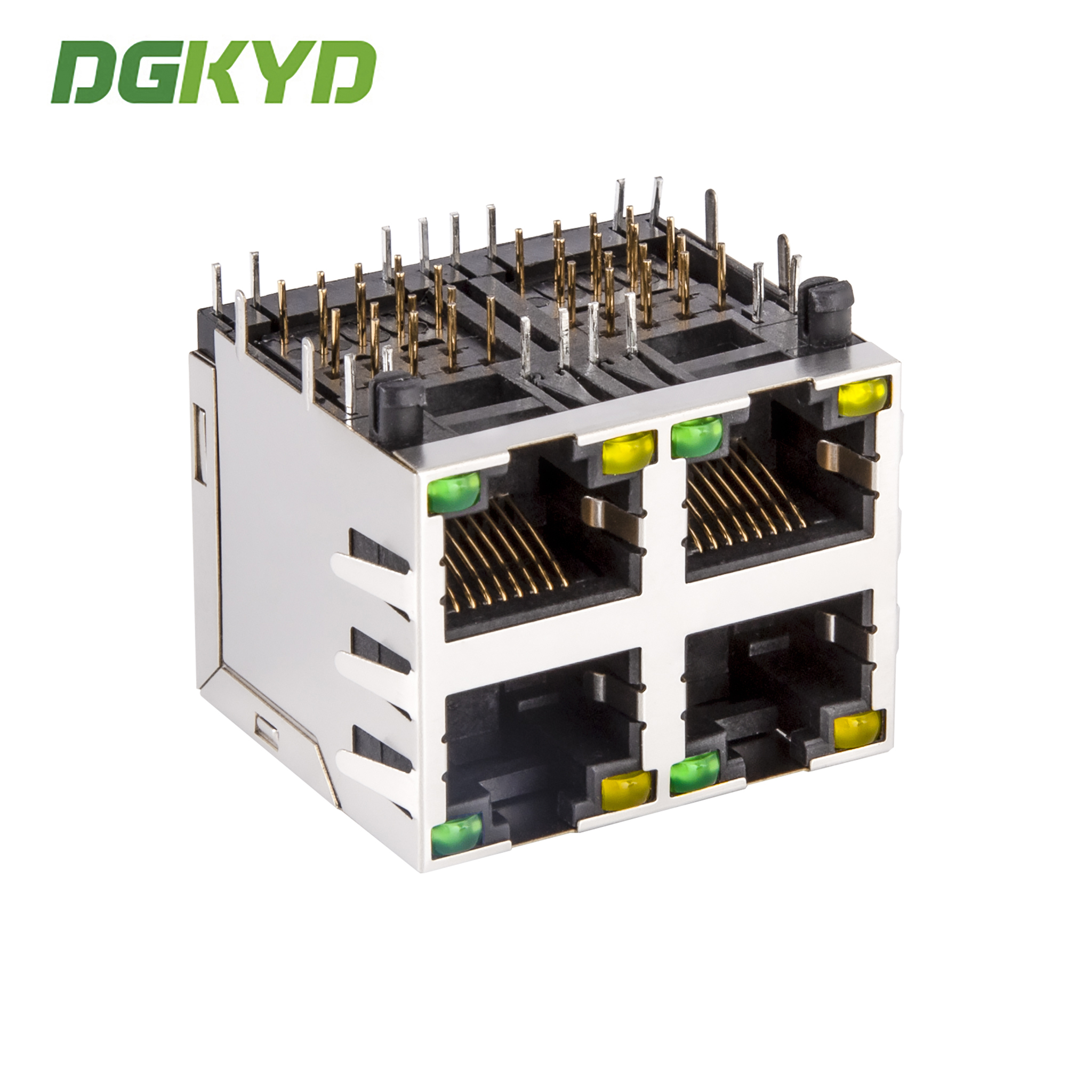

Product Images

Product Features

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

Manufacturer Advantages

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Multiple customization options available for LED indicators, shielding, coil ratios, plating, and housing materials
Products meet industry standards for electrical properties, mechanical properties, and environmental protection

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
