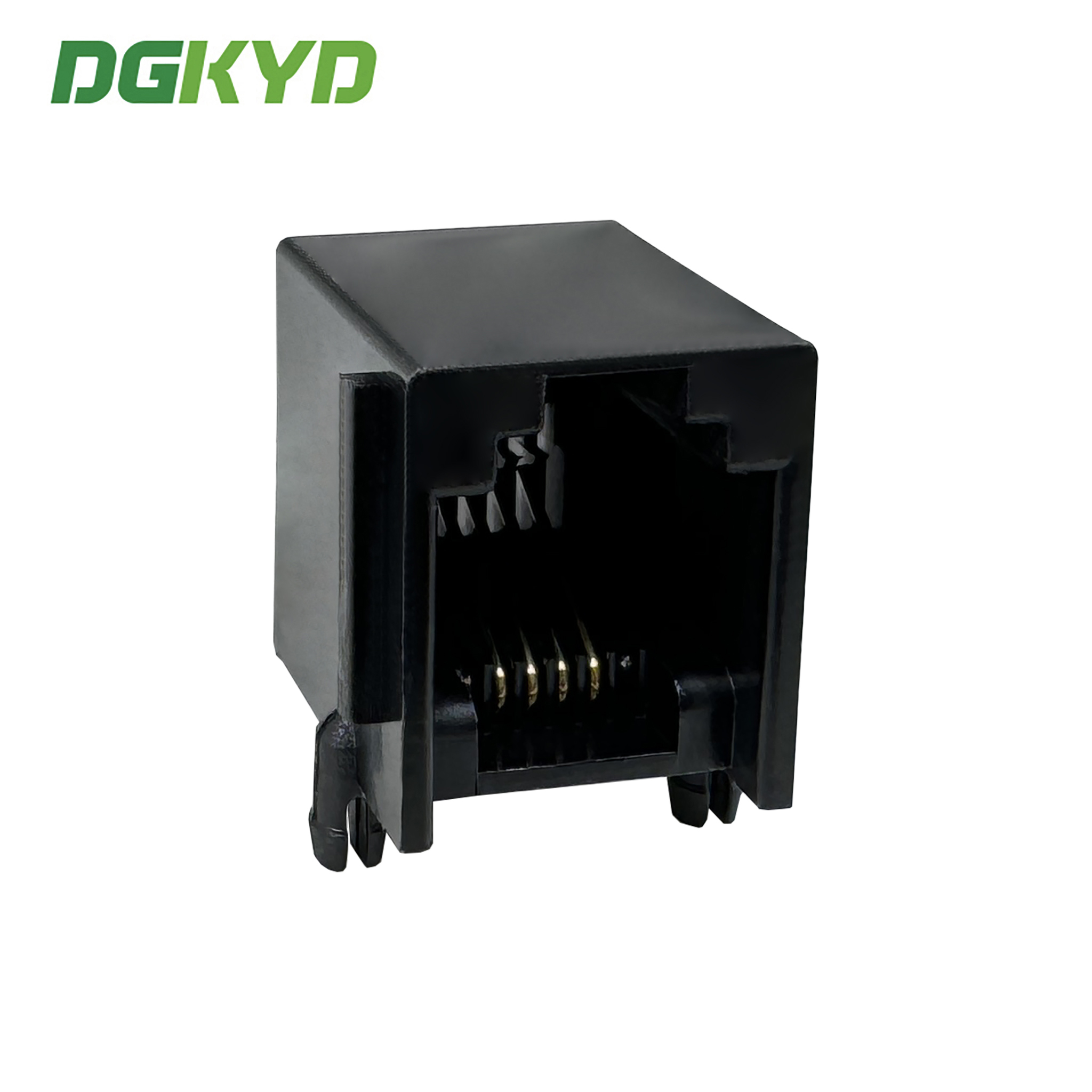

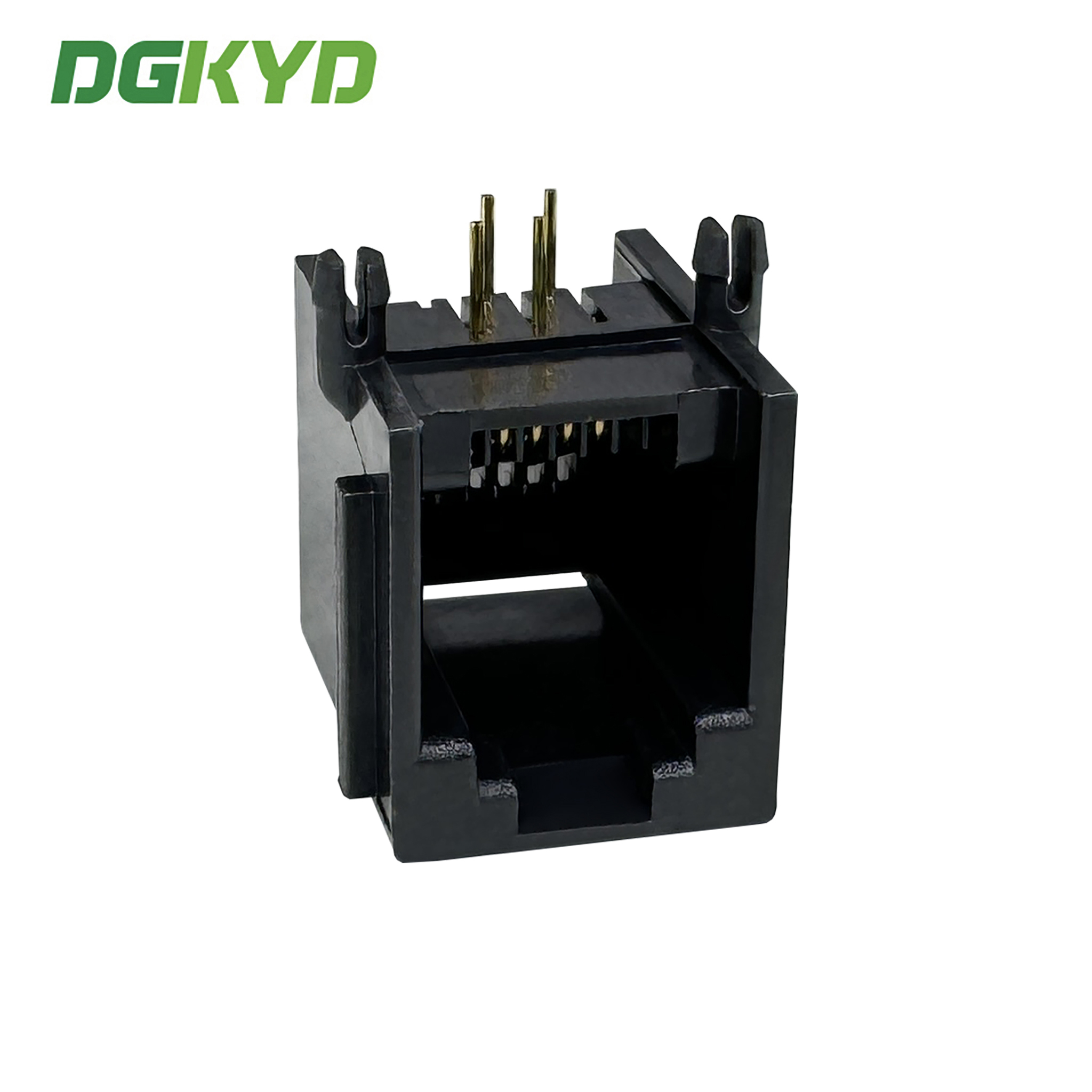

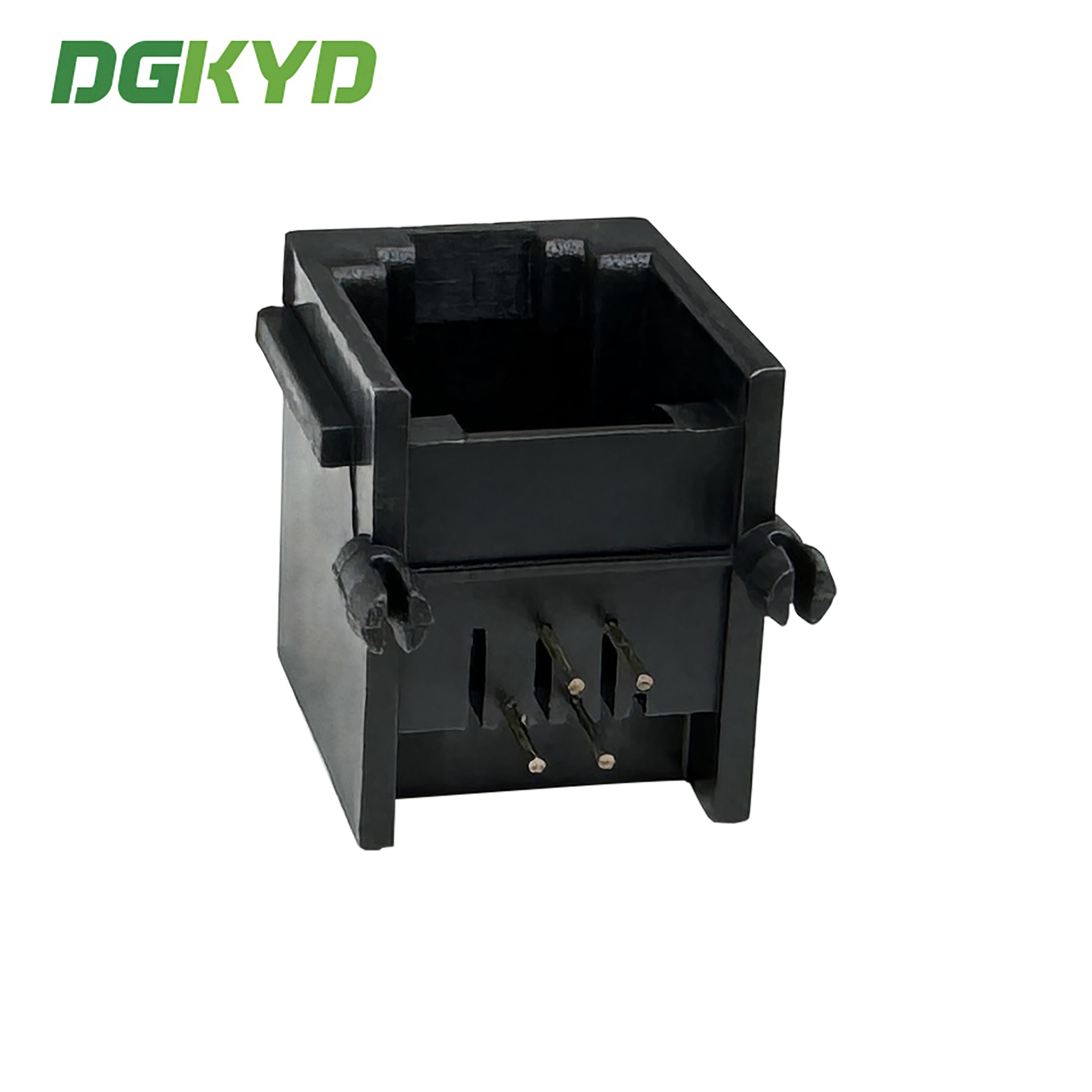

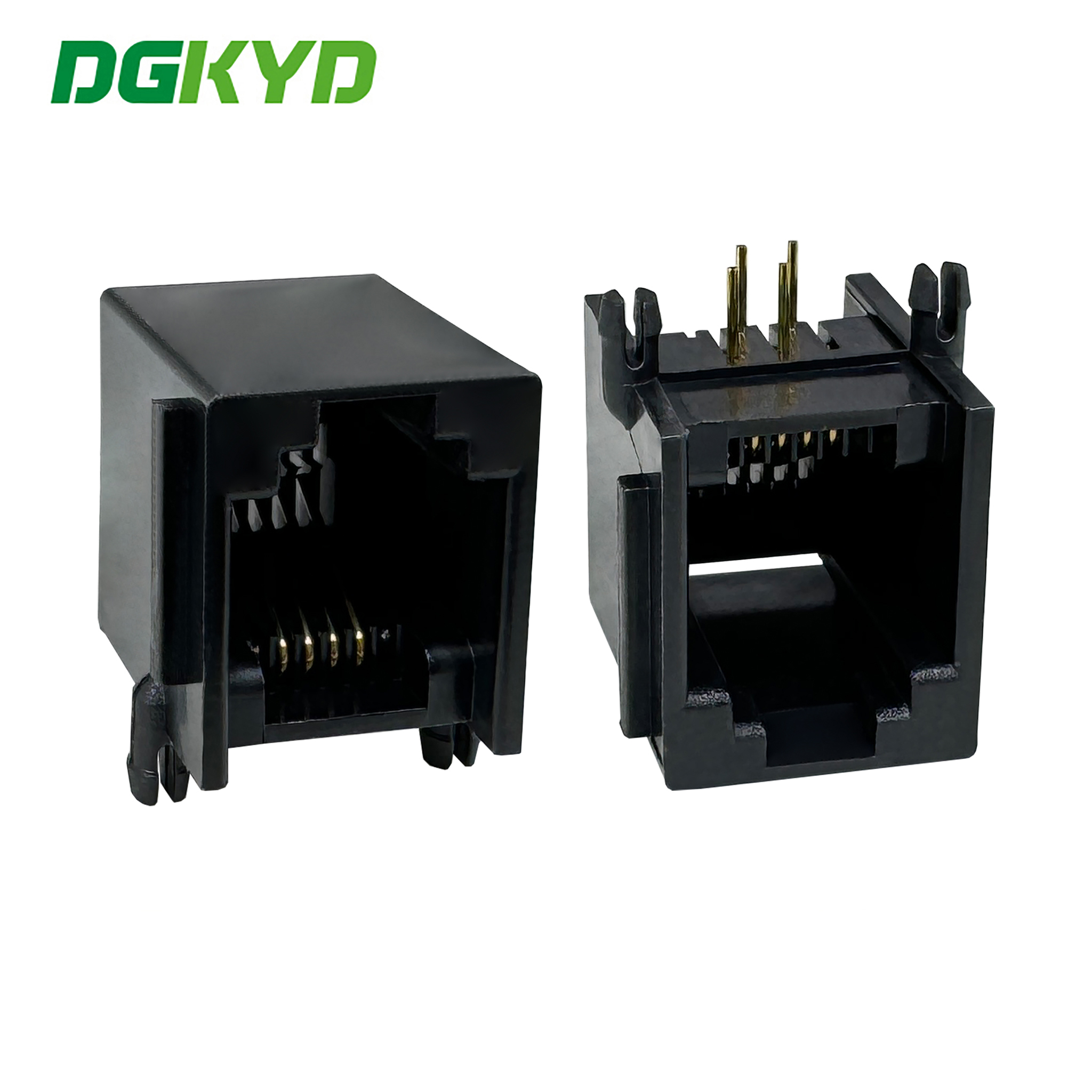

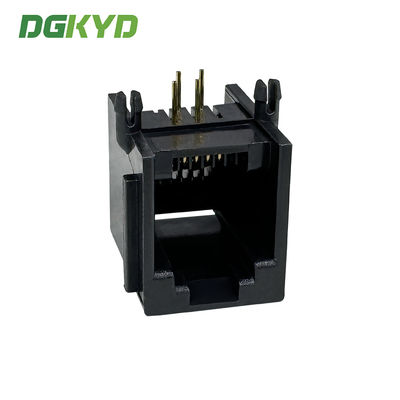

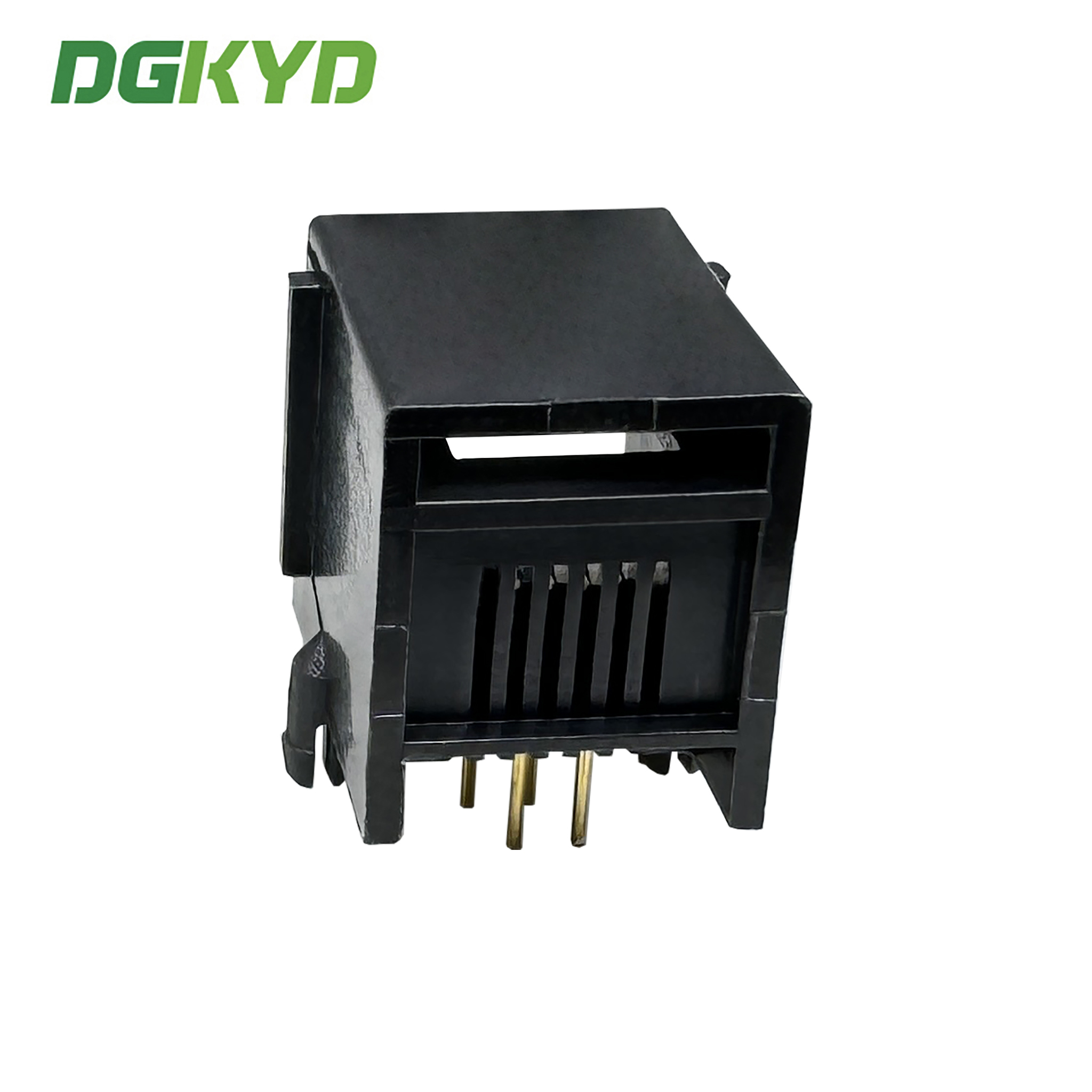

RJ11 connector 6P4C without light and filter network port socket DGKYD5523E1164IWA1DY1

Количество мин заказа :	Возможен торг	Цена :	Подлежит обсуждению
Упаковывая детали :	Поднос в картонной картоне	Время доставки :	7-14 дней
Условия оплаты :	LC, D/A, D/P, T/T, Western Union, MoneyGram	Поставка способности :	60000 штук в день

Место происхождения:	Дунгуань Китая	Фирменное наименование:	DGKYD
Сертификация:	RoHS/CE/FCC/CE/ISO9001/ISO14001	Номер модели:	DGKYD5523E1164IWA1DY1

Подробная информация
Название продукта:	соединитель rj11	Тип разъема:	Джек
Приложение:	ПК, маршрутизатор, сеть USB-концентратора rj11 и т. д.	Пол:	Женский
Трансформатор:	RJ11 без трансформатора	Золотое покрытие на контактных булавках:	FU
Эксплуатационная температура:	-40 ° C ~+85 ° C.	Температура хранения:	-40 ° C ~+85 ° C.
Количество стежков:	6p4c
Выделить:	RJ11 connector 6P4C network port , RJ11 jack without light filter , RJ11 socket with warranty

Характер продукции

RJ11 connector 6P4C without light and filter network port socket DGKYD5523E1164IWA1DY1

Part Number	DGKYD5523E1164IWA1DY1	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ11	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	No	Applies To	Printed Circuit Board
Performance Speed	10/100/1000/BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative)
Port Configuration	single Ports	Number of Positions	4
Jack Configuration	1X1	Terminals per Port	6
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Technical Specifications

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: 40℃ - 85℃
Storage temperature: -40℃ - 85℃
Lead free soldering: wave soldering height up to 265℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Product Features

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT,PA46,PA9T, LCP)

Performance Parameters

Applied to Ethernet, coil ratio: 1CT: 1CT
Meet IEEE 802.3 & ANSI X 3.263 standard
Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias
Wave soldering process of 265℃ Max meeting the requirements of EU ROHS standard
Withstand voltage: 2250VDC 1mA max, 60s
Impedance: 100 ohms
RJ45 interface meets FCC 68.5 standard
DC resistance: 1.5 Ω

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
