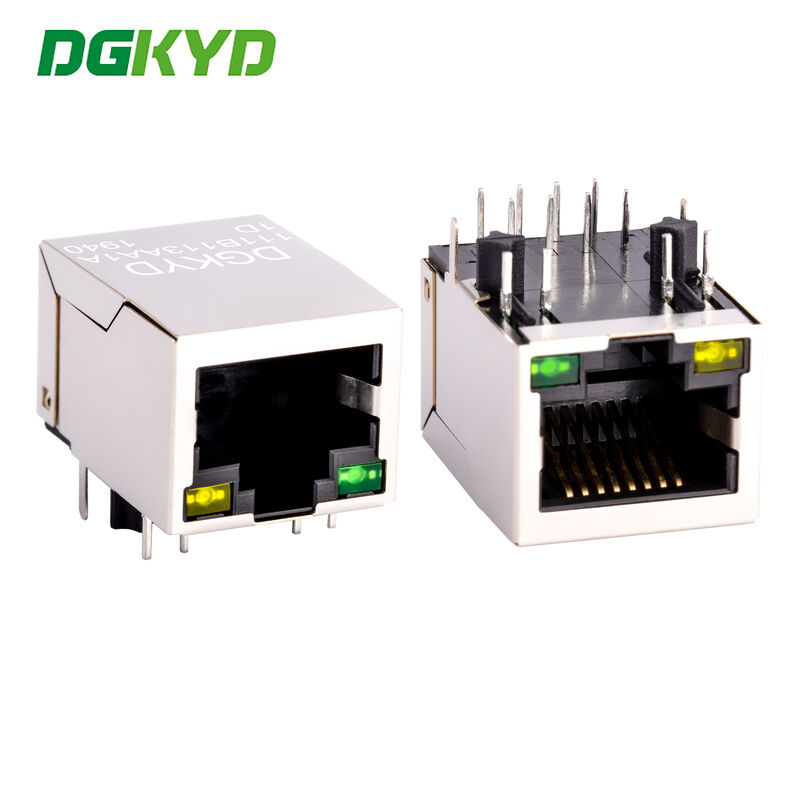

RJ45 network interface integrated 100Mbps filter network port socket horizontal DGKYD111B113AA1D

Количество мин заказа :	1 шт.	Цена :	Please contact us to get the latest price.
Упаковывая детали :	Поднос в картонной картоне	Время доставки :	10 дней
Условия оплаты :	T/T, D/P, D/A, L/C, Western Union, Moneygram	Поставка способности :	100 тыс. ПК/день

Место происхождения:	Дунгуань Китая	Фирменное наименование:	DGKYD
Сертификация:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Номер модели:	ДГКИД111Б113АА1А1Д

Подробная информация
Производительность:	кошка5	Название продукта:	Соединитель PCB RJ45
Гаван ориентация:	Бортовой вход	Стиль держателя:	Крепление печатной платы
Щит RJ45:	Да	Тип:	RJ45
ВЕЛ:	желтый/зеленый	Количество позиций/контактов:	8P8c (RJ45, локальные сети)
Золотое покрытие на контактных булавках:	6U	Рабочая температура:	-40 ° C ~+85 ° C.
Хранение Температура хранения:	- 40 ℃ ~ 85 ℃
Выделить:	RJ45 network port socket 100Mbps , RJ45 PCB connector horizontal mount , RJ45 filter network port with warranty

Характер продукции

Product Specifications

Part Number	DGKYD111B113AA1D	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	1X1 Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

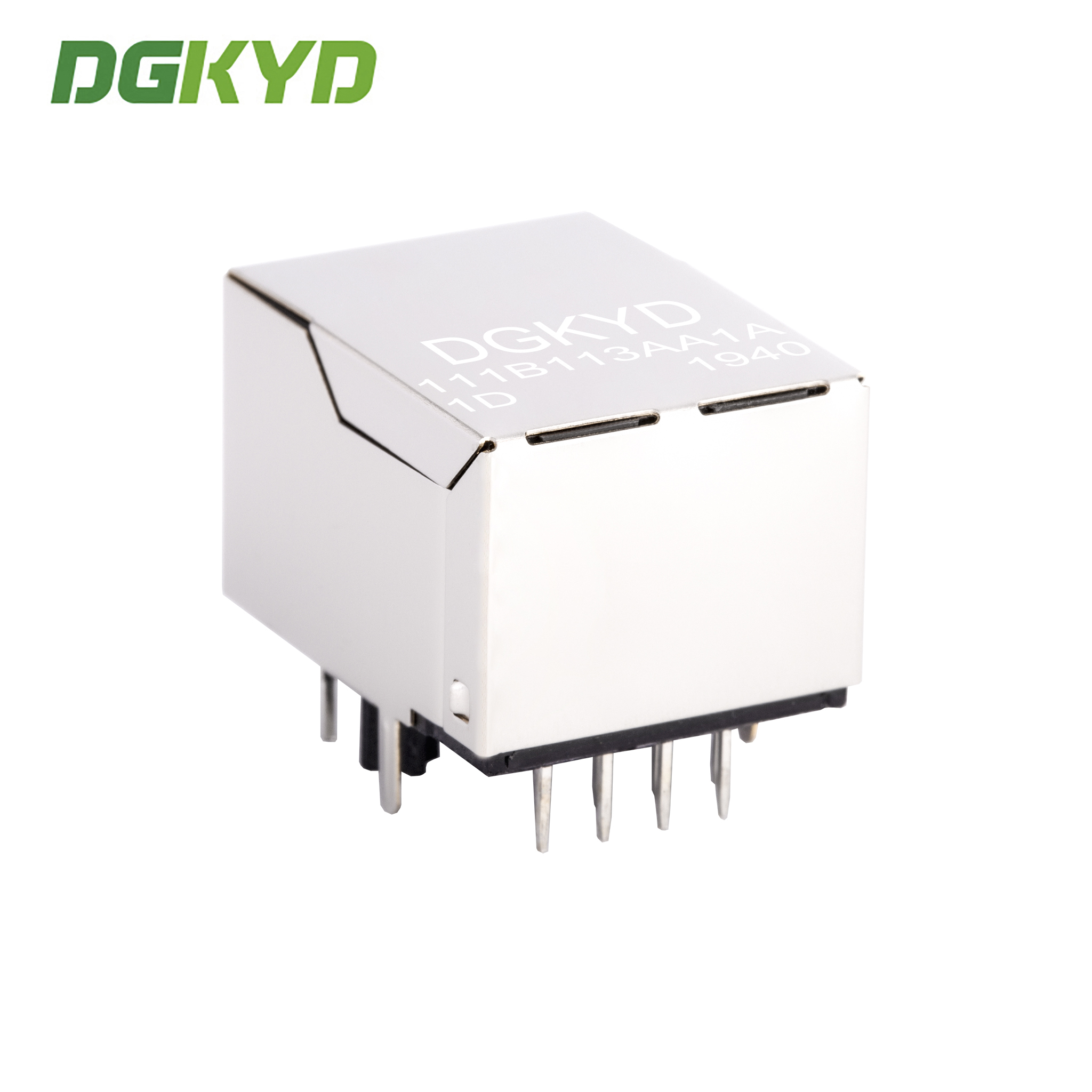

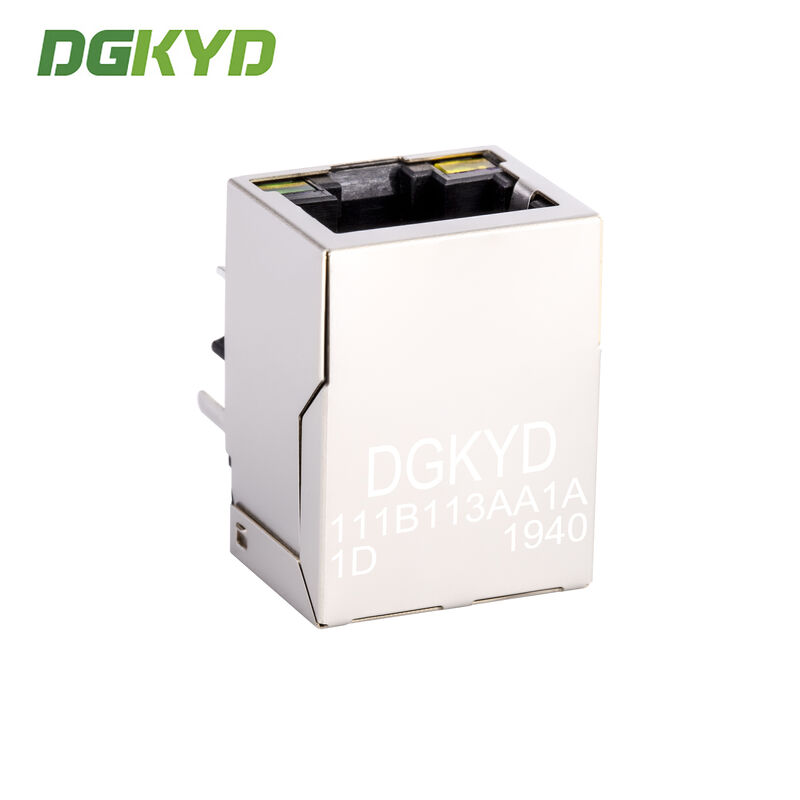

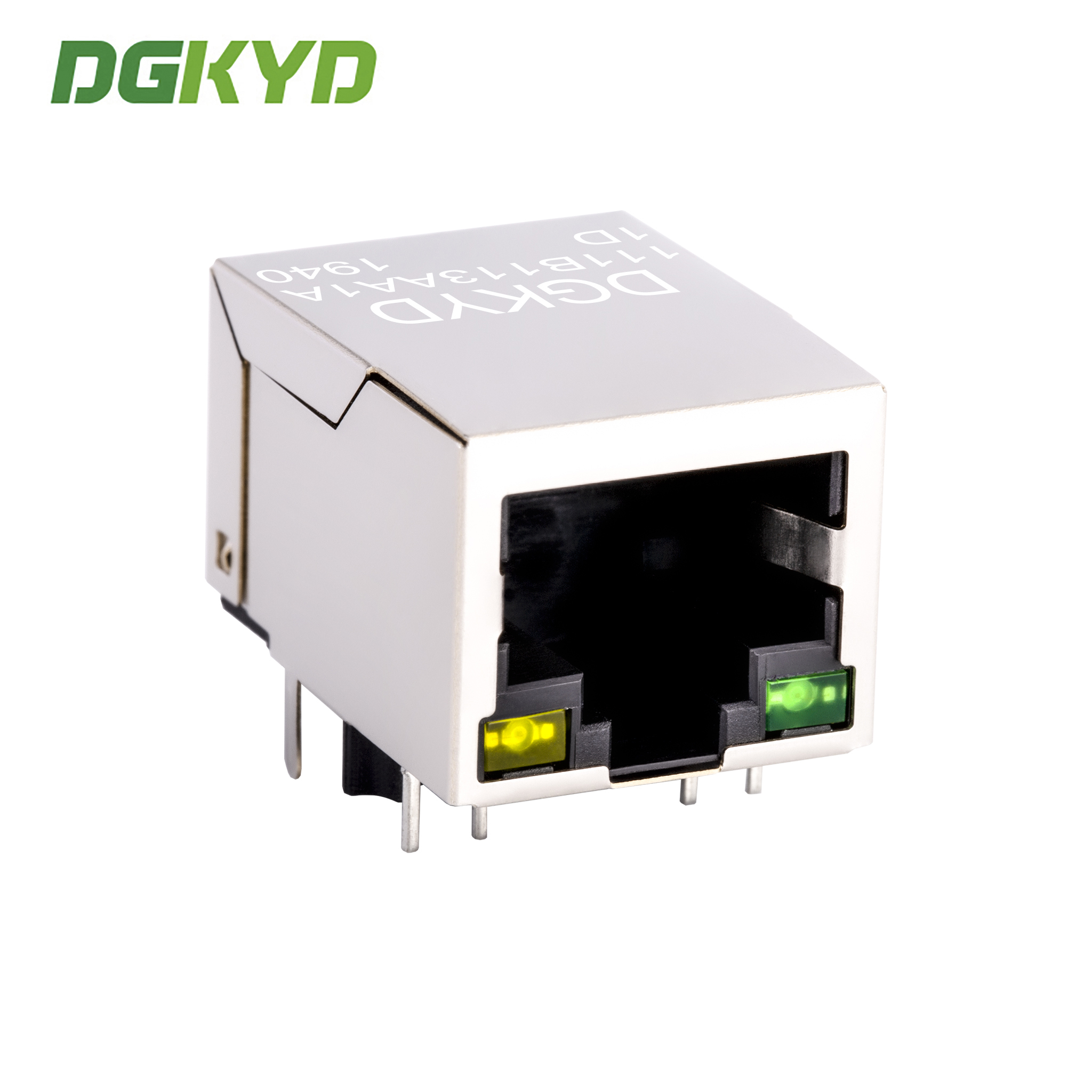

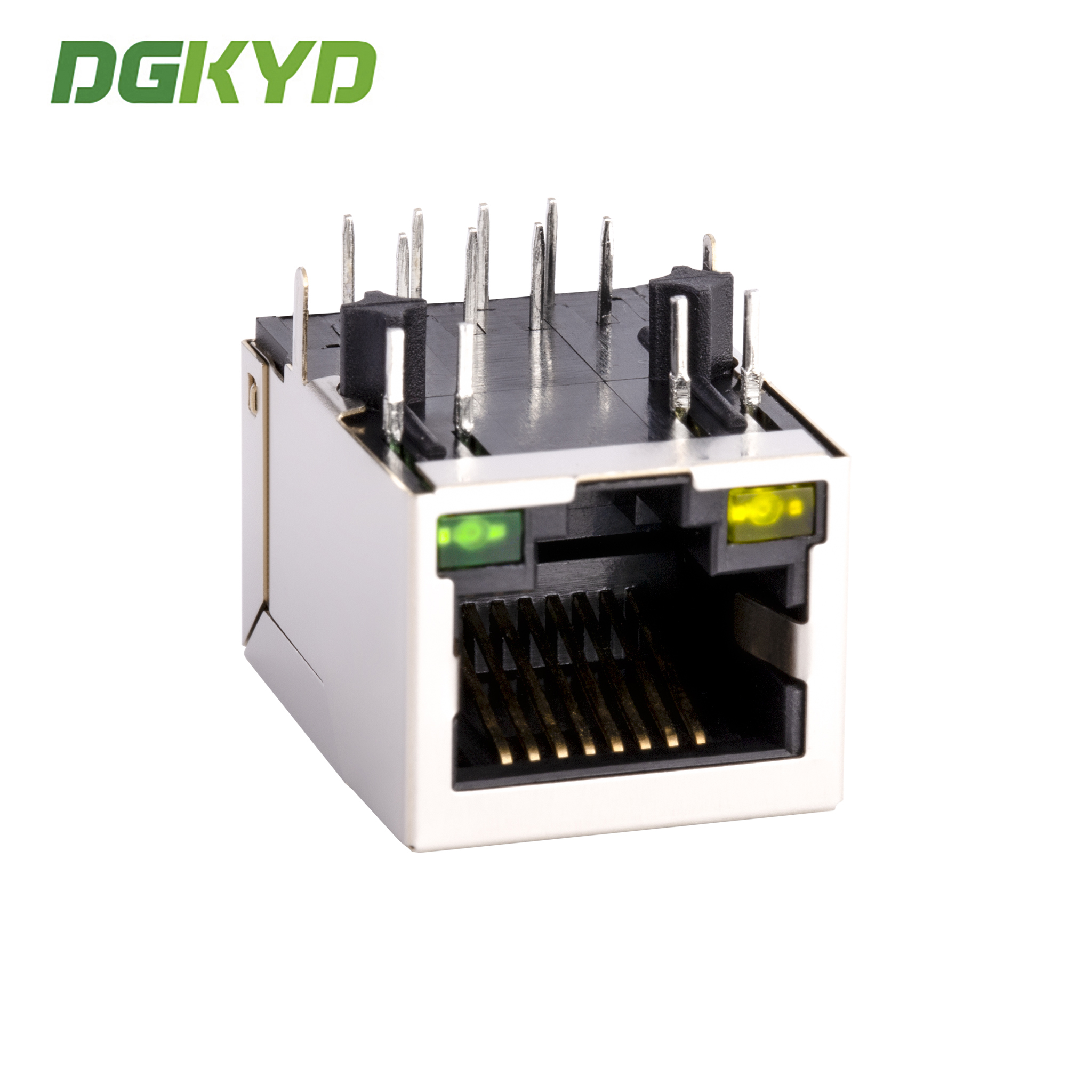

Product Images

LED Specifications

Emitting color	Dominant wavelength(nm) (min/max)	Forward voltage (v)	Forward current (A)	Type
Green	570-575	1.8-2.4	20mA	Squareness
Yellow	585-590	1.8-2.4	20mA	Squareness

Product Features

Manufacturing Advantages

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Customization options available for LED indicator lights, shielding, magnetic core ratios, contact plating, and housing materials
Products meet industry standards for electrical properties, mechanical properties, and environmental protection

RJ45 network port socket 100Mbps
