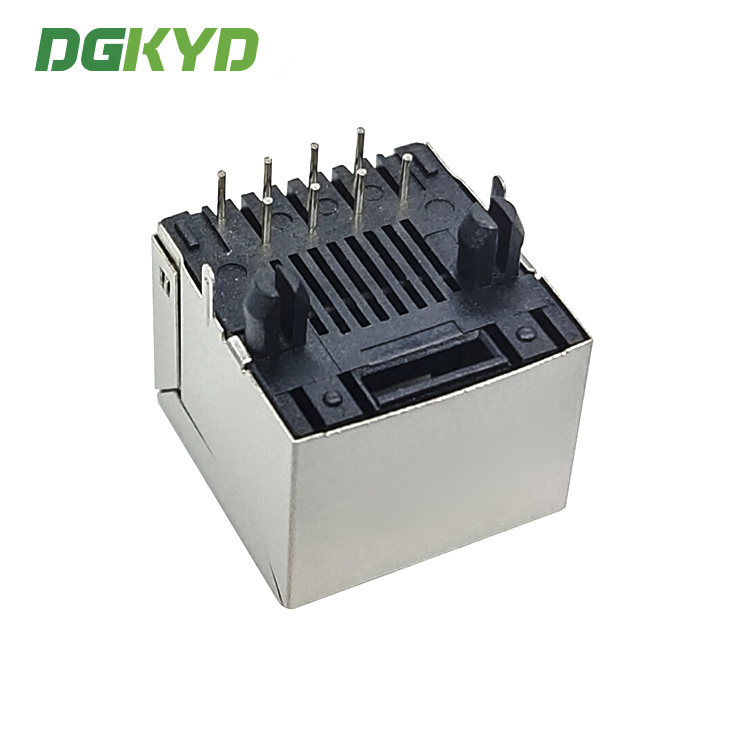

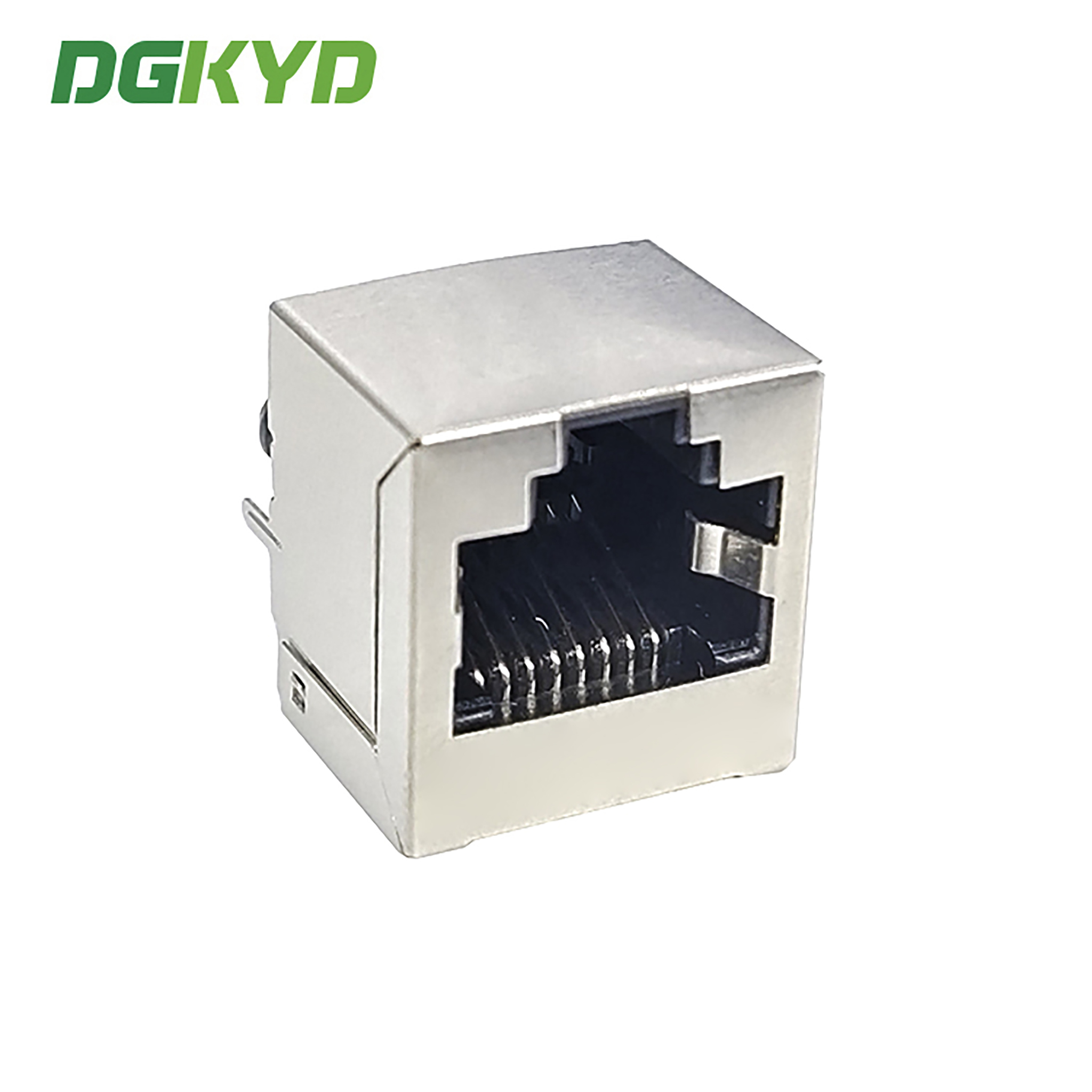

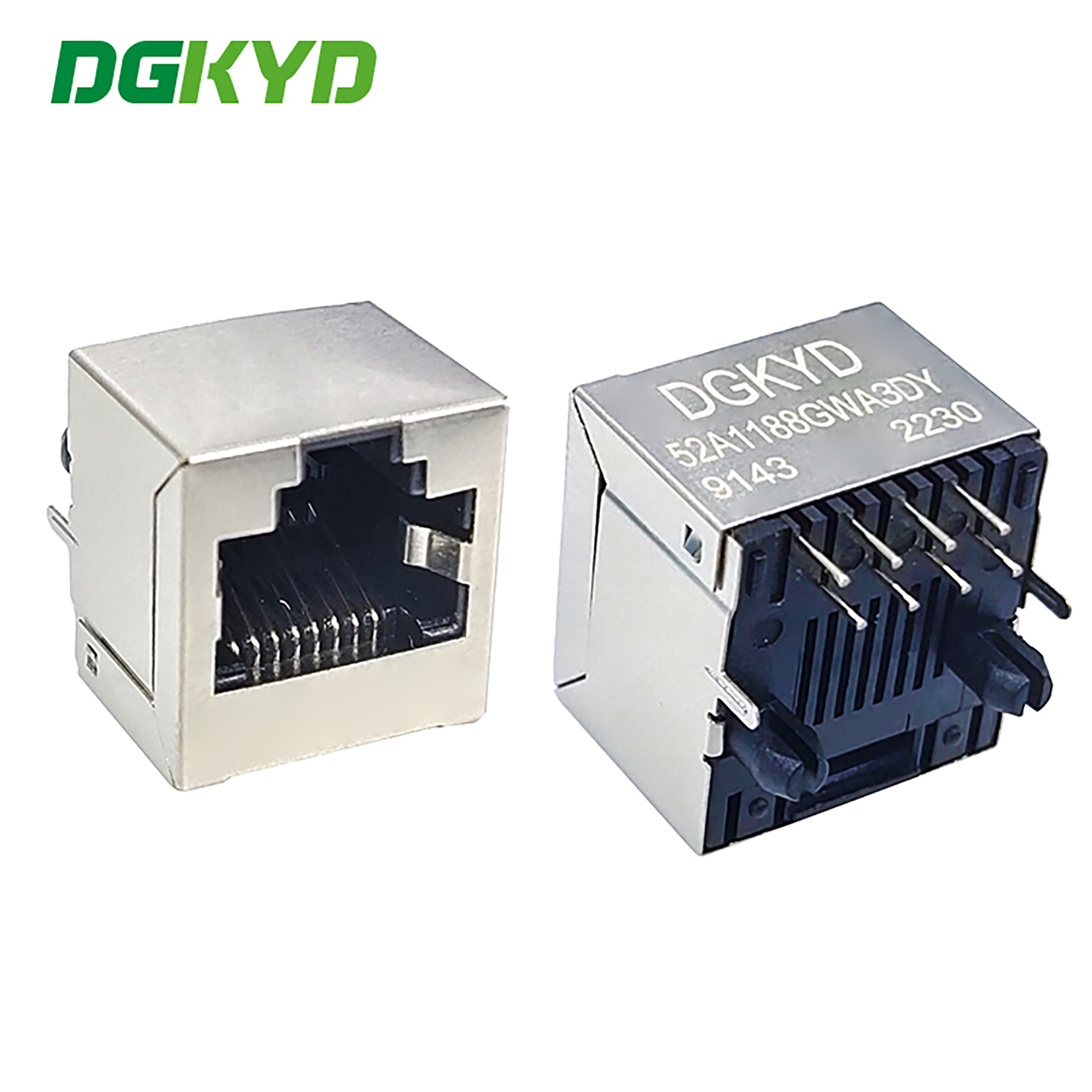

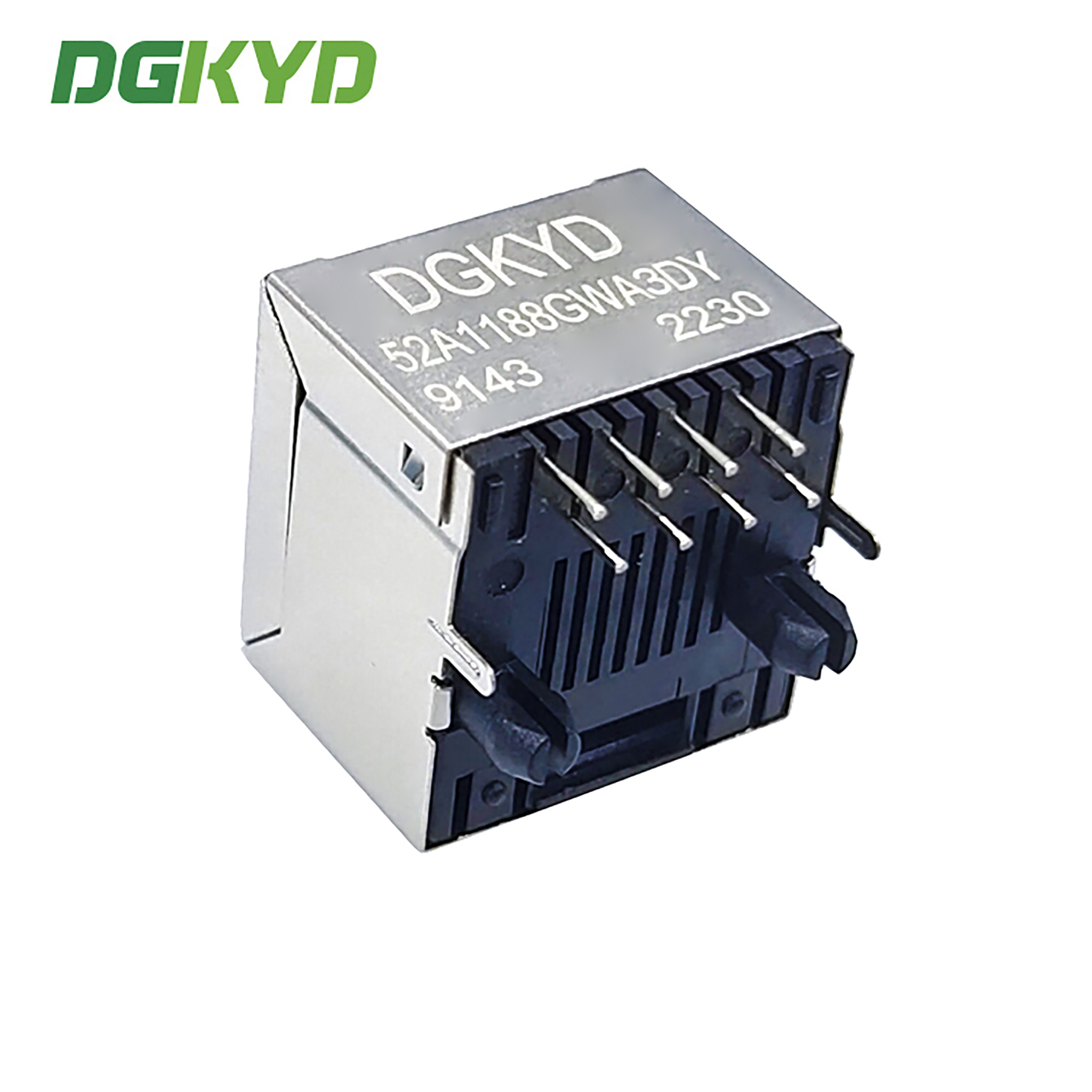

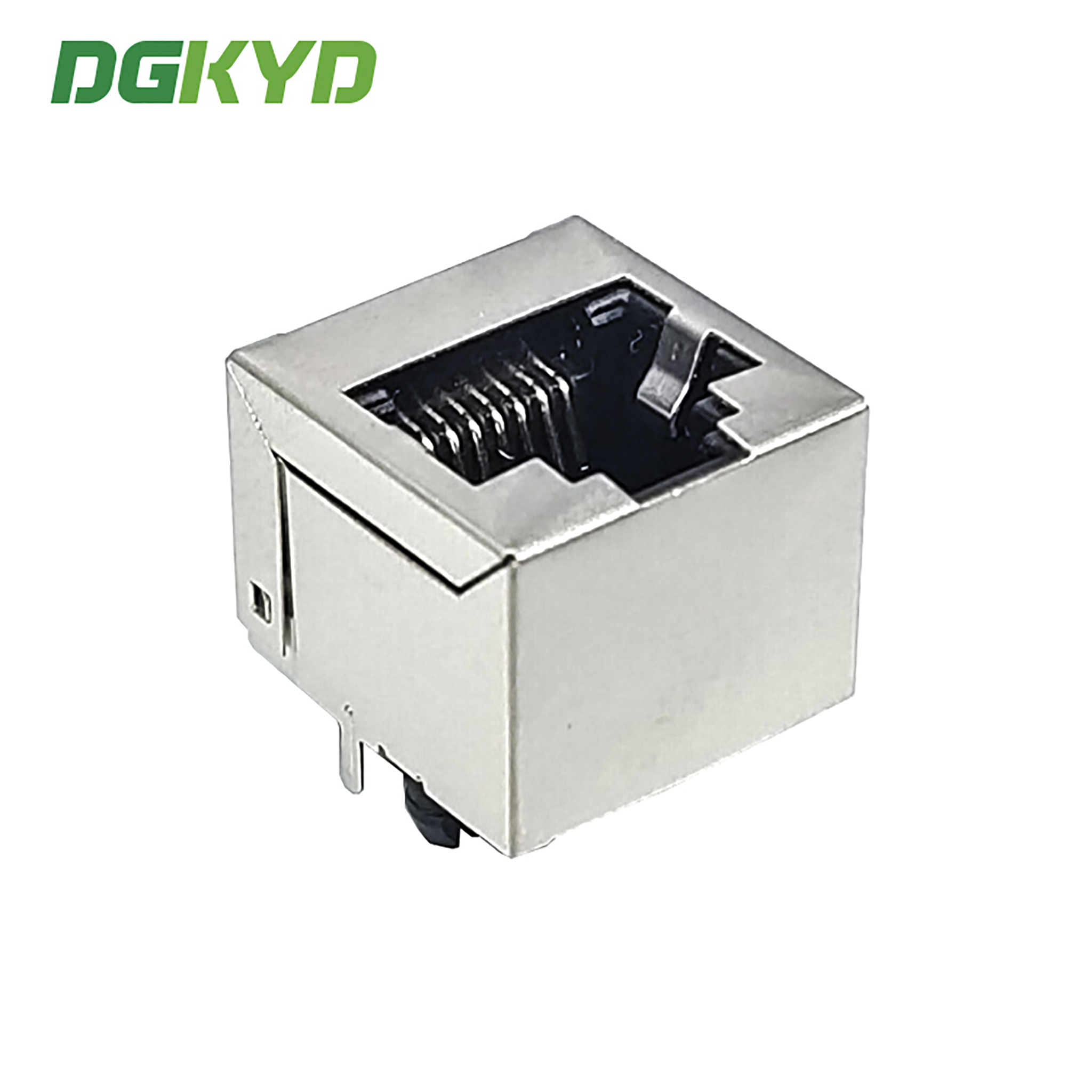

DGKYD52A1188GWA3DY9143 52A RJ45 8P8C Connector In Line 180 Degree Socket

Количество мин заказа :	переговоры	Цена :	Please contact us to get the latest price.
Упаковывая детали :	4800Tray в коробке	Время доставки :	10 дней
Условия оплаты :	T/T, D/P, D/A, L/C, Western Union, Moneygram	Поставка способности :	100 тыс. ПК/день

Место происхождения:	Дунгуань Китая	Фирменное наименование:	DGKYD
Сертификация:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Номер модели:	DGKYD52A1188GWA3DY9143

Подробная информация
Тип продукта:	RJ45	Метод инкапсуляции:	Одиночный встроенный пакет
Стиль MOUNT PCB:	ОКУНАТЬ	Форма:	прямоугольник
Щит:	Да	Количество контактов:	8
Количество ядер:	8	Размер (мм):	15,912,716,6 мм
Золотое покрытие на контактных булавках:	1U.	Рабочая температура:	- 40 ℃ ~ 85 ℃
Температура хранения:	- 40 ℃ ~ 85 ℃
Выделить:	52A RJ45 8P8C connector , 180 degree socket RJ45 connector , 52 series in-line RJ45 connector

Характер продукции

DGKYD52A1188GWA3DY9143 52A RJ45 8P8C Connector In Line 180 Degree Socket

Technical Specifications

Part Number	DGKYD52A1188GWA3DY9143
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	Without Filter
LED Option	Without LED
LED Color	No
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Ports
Number of Positions	8
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 1u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PA46 Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

Company Information

Company Profile DGKYD52A1188GWA3DY9143 52A RJ45 8P8C Connector In Line 180 Degree Socket 2

Factory Show DGKYD52A1188GWA3DY9143 52A RJ45 8P8C Connector In Line 180 Degree Socket 3

Product Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
