RJ45 with USB 2.0 socket Gigabit integrated filter network port connector KRJ-008QUSBNL

Количество мин заказа : 1 шт. Цена : Please contact us to get the latest price.
Упаковывая детали : Поднос в картонной картоне Время доставки : 10 дней
Условия оплаты : Т/Т, Д/П, Д/А, Л/К, западное соединение, МонейГрам Поставка способности : 100 тыс. шт/день
Место происхождения: Дунгуань Китая Фирменное наименование: DGKYD
Сертификация: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Номер модели: KRJ-008QUSBNL

Подробная информация

Название продукта: RJ45 с трансформатором тип: Соединитель комбинированный
Жилье: Фенолический, PBT черный (UL94V-0) Щит RJ45: Да
No.Порт: Один порт RJ45 с USB ROHS: Да
Стиль MOUNT PCB: ОКУНАТЬ Количество контактов: 8
Количество ядер: 8 Золотое покрытие на контактных булавках:
Рабочая температура: - 40 ℃ ~ 85 ℃ Температура хранения: - 40 ℃ ~ 85 ℃
Выделить:

RJ45 USB 2.0 connector with filter

,

Gigabit network port RJ45 USB

,

RJ45 USB integrated filter connector

Характер продукции

RJ45 with USB 2.0 Socket Gigabit Integrated Filter Network Port Connector
Part Number: KRJ-008QUSBNL
Download Product Documentation (PDF)
Technical Parameters
Parameter Specification
Part Number KRJ-008QUSBNL
Brand DGKYD/OEM/ODM
Product Type Connector-Modular
Connector Style Jack
Jack Type RJ45
Connector Type Modular Jack
Latch Style Standard
Filter With Filter
LED Option With LED
LED Color Green/Yellow
Shielded With metal shield
Applies To Printed Circuit Board
Port Configuration Single Port
Number of Positions 12
PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u
Contact Base Material Phosphor Bronze
PCB Mounting Style Through Hole
Termination Method Through Hole-Press-Fit
Board Lock With/Without Board Lock
Housing Material PBT Polyester
Housing Color Black
UL Flammability Rating UL 94V-0
Product Images

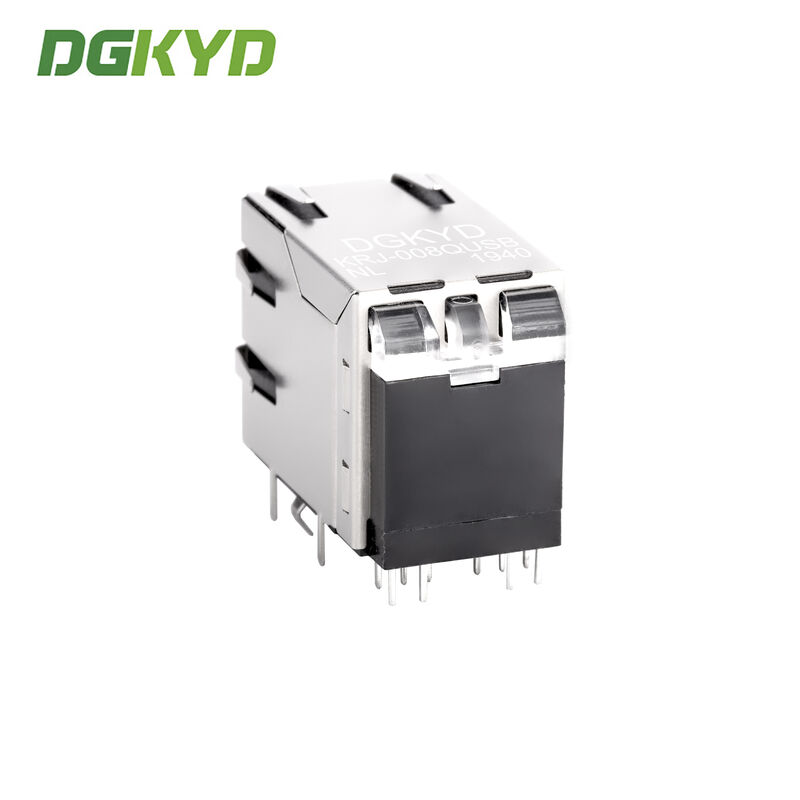

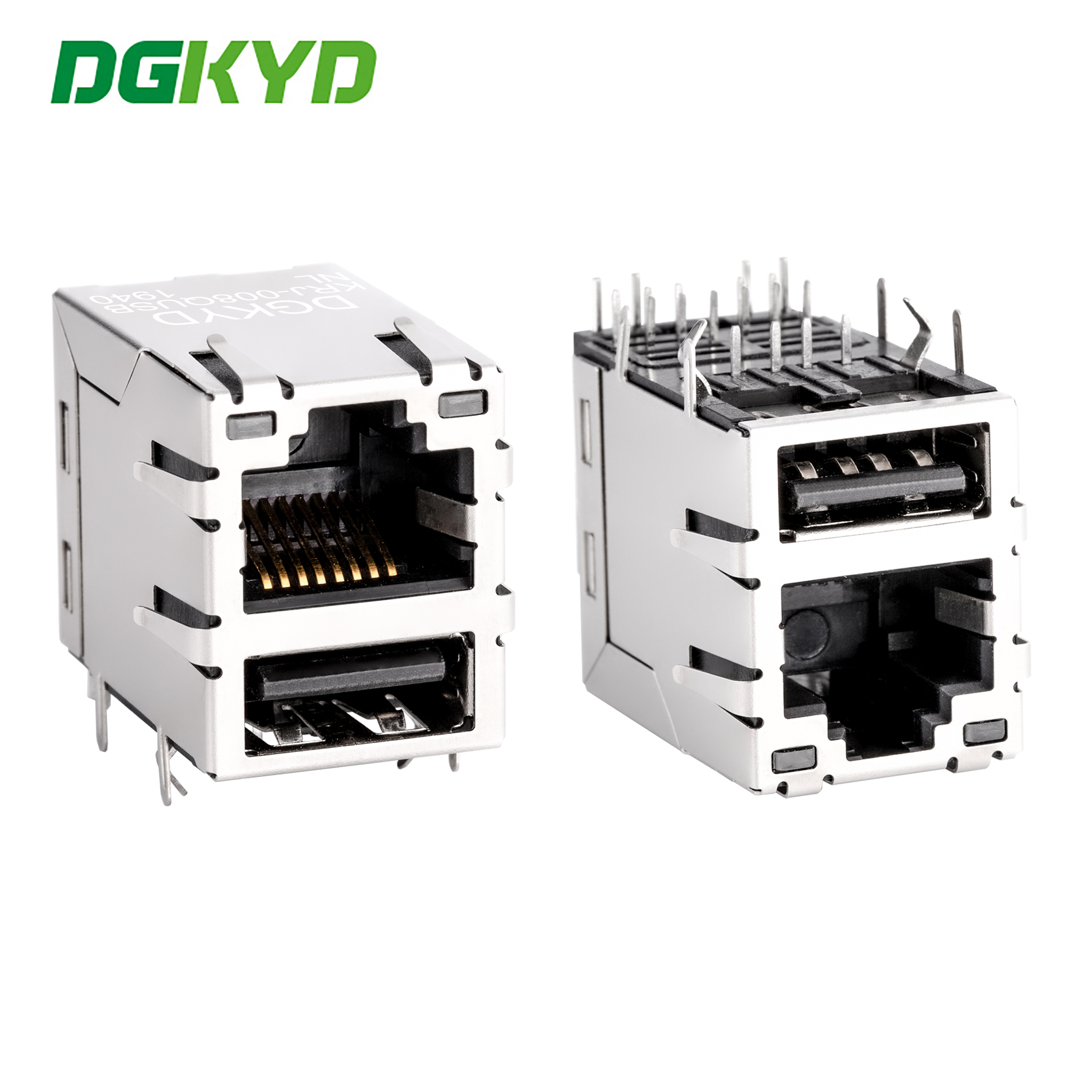

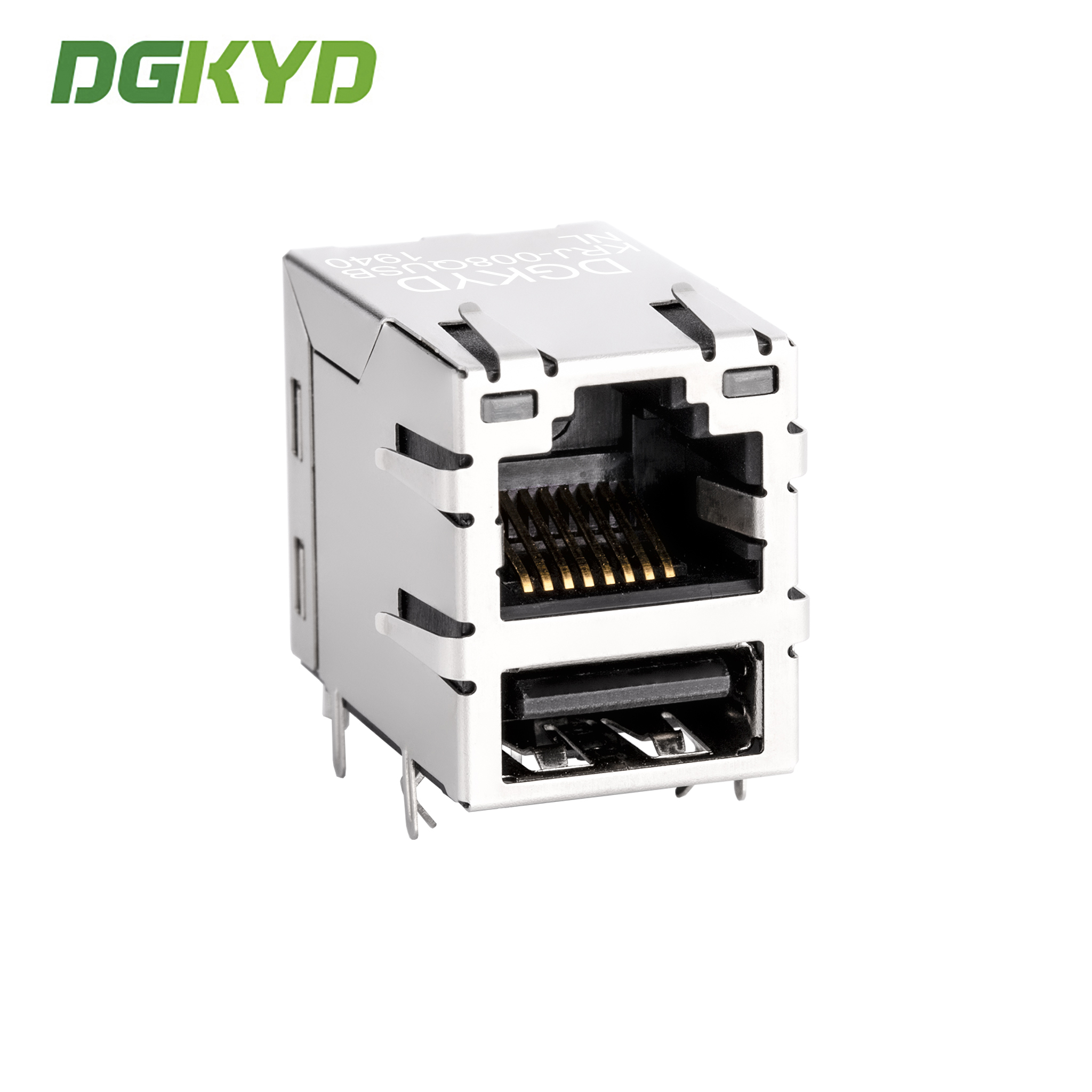

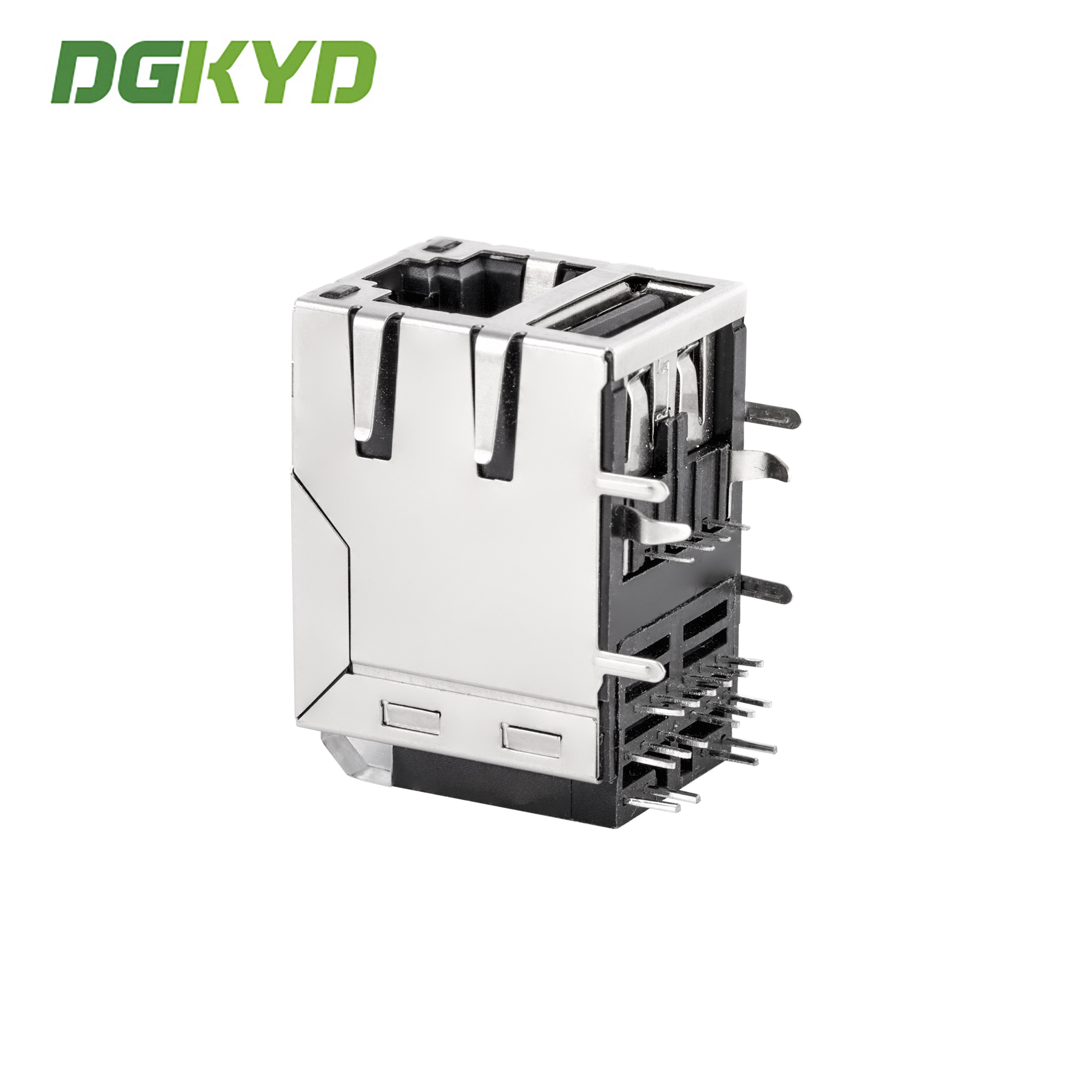

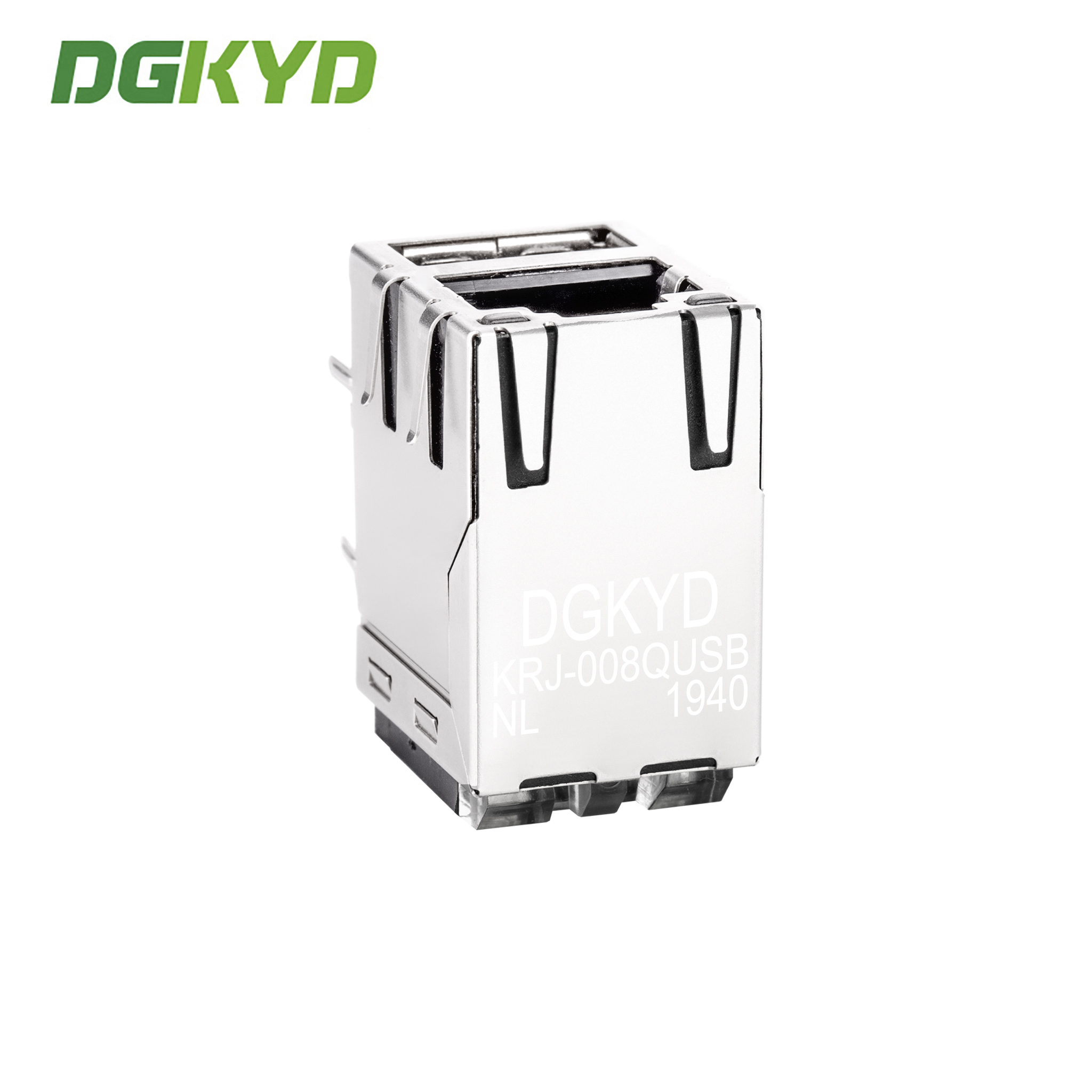

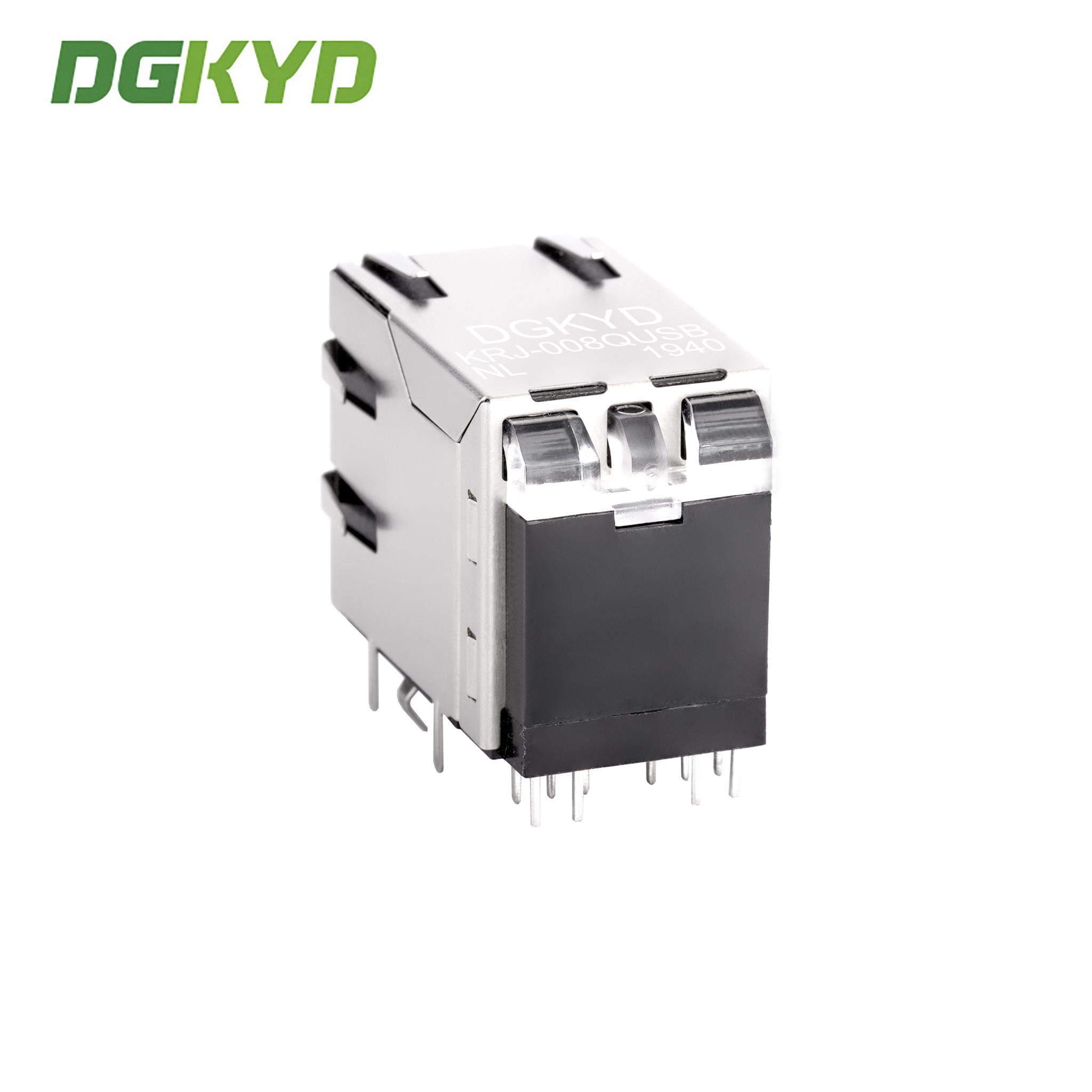

RJ45 with USB 2.0 socket Gigabit integrated filter network port connector KRJ-008QUSBNL 0 RJ45 with USB 2.0 socket Gigabit integrated filter network port connector KRJ-008QUSBNL 1 RJ45 with USB 2.0 socket Gigabit integrated filter network port connector KRJ-008QUSBNL 2 RJ45 with USB 2.0 socket Gigabit integrated filter network port connector KRJ-008QUSBNL 3 RJ45 with USB 2.0 socket Gigabit integrated filter network port connector KRJ-008QUSBNL 4 RJ45 with USB 2.0 socket Gigabit integrated filter network port connector KRJ-008QUSBNL 5 RJ45 with USB 2.0 socket Gigabit integrated filter network port connector KRJ-008QUSBNL 6 RJ45 with USB 2.0 socket Gigabit integrated filter network port connector KRJ-008QUSBNL 7 RJ45 with USB 2.0 socket Gigabit integrated filter network port connector KRJ-008QUSBNL 8 RJ45 with USB 2.0 socket Gigabit integrated filter network port connector KRJ-008QUSBNL 9
Technical Specifications
  • Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
  • Type: RJ45 with built-in magnetics
  • Working Frequency: High frequency with filtering and anti-interference characteristics
  • Working Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Lead-Free Soldering: Wave soldering height up to 265°C
Manufacturing Capabilities
RJ45 full series of integrated circuit accessories, manufacturer direct supply
  • Business Mode: Manufacturer
  • Delivery Time: Approximately two weeks for standard orders
  • Customization Options:
    • LED indicator light (green, yellow, red, orange, blue, bi-color LED)
    • Shield with EMI fingers or without
    • Coil ratio of magnetic core
    • Magnetics circuit diversification options
    • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
    • Plastic housing material (PBT, PA46, PA9T, LCP)
Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer. Welcome to visit our factory.
What about your lead time?
For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
Can you provide samples? Are they free?
Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Can I put my own logo on it?
Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
