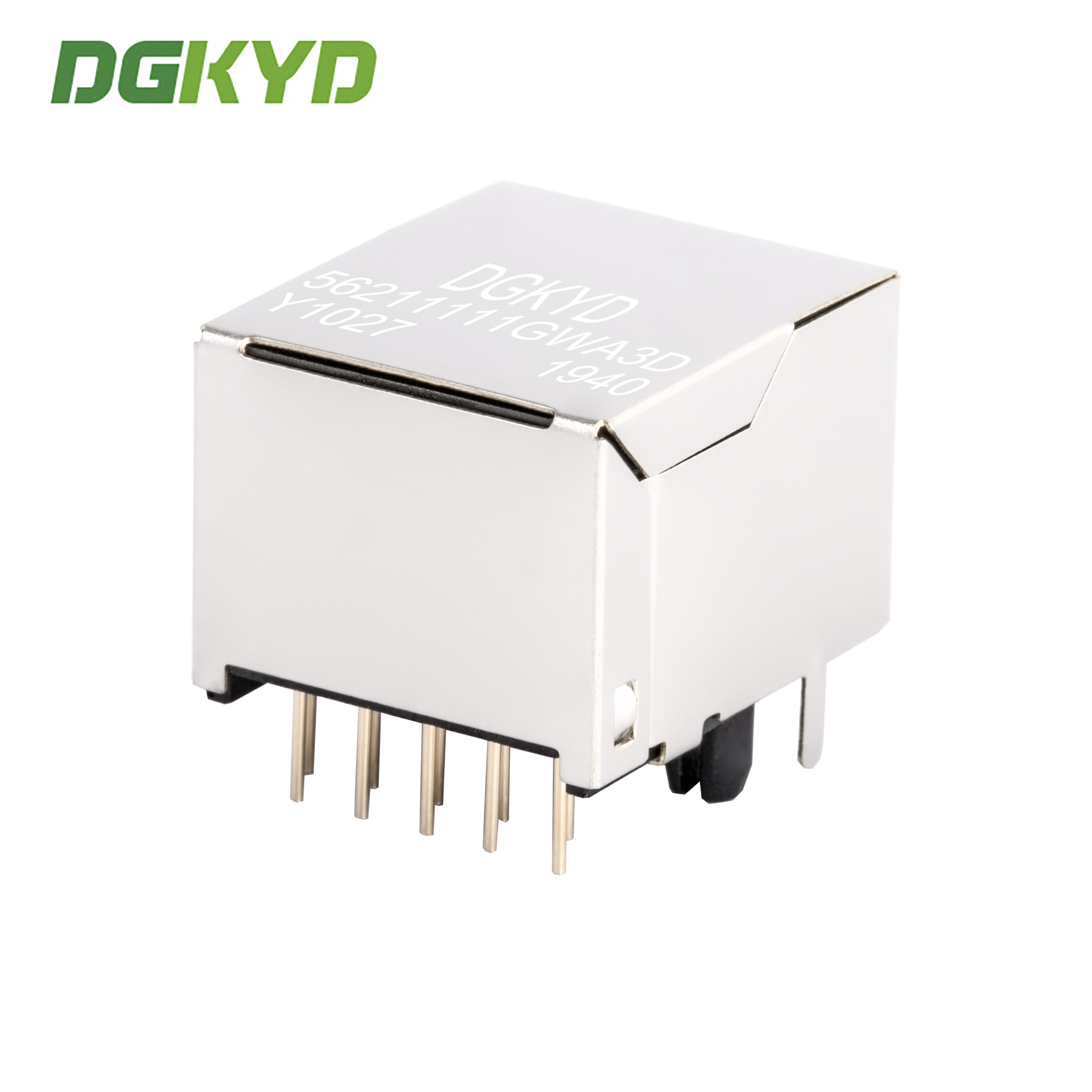

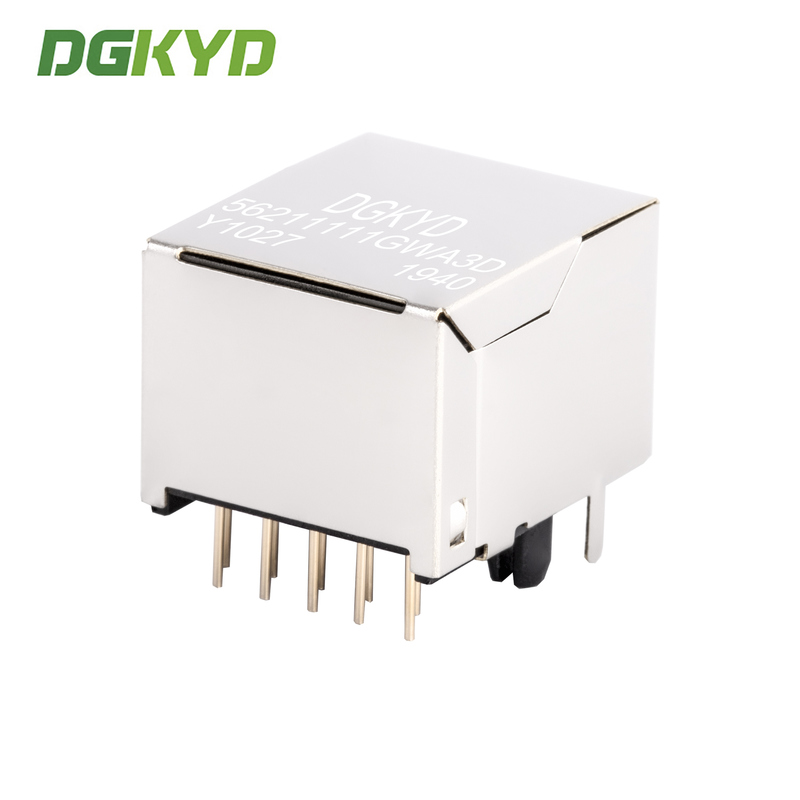

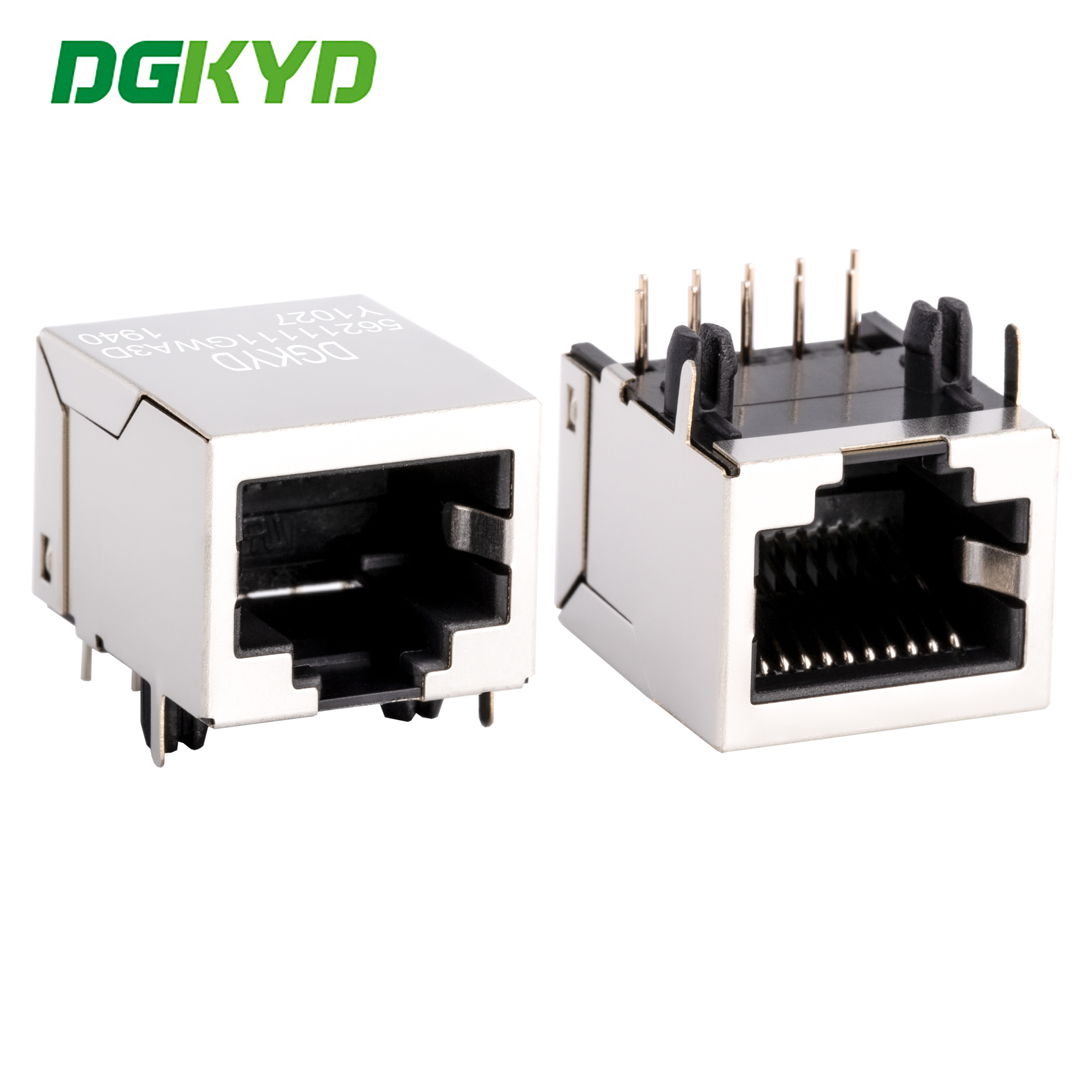

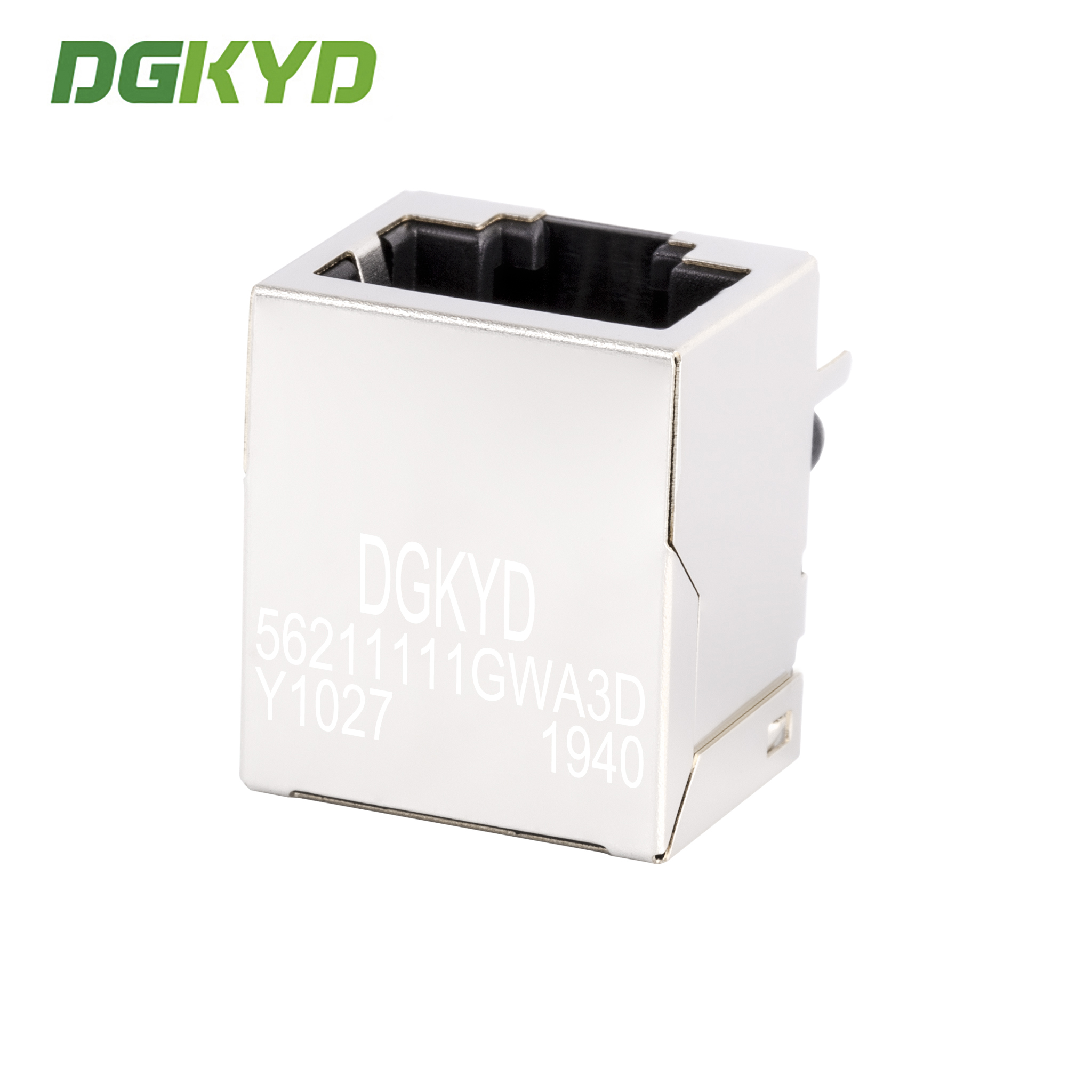

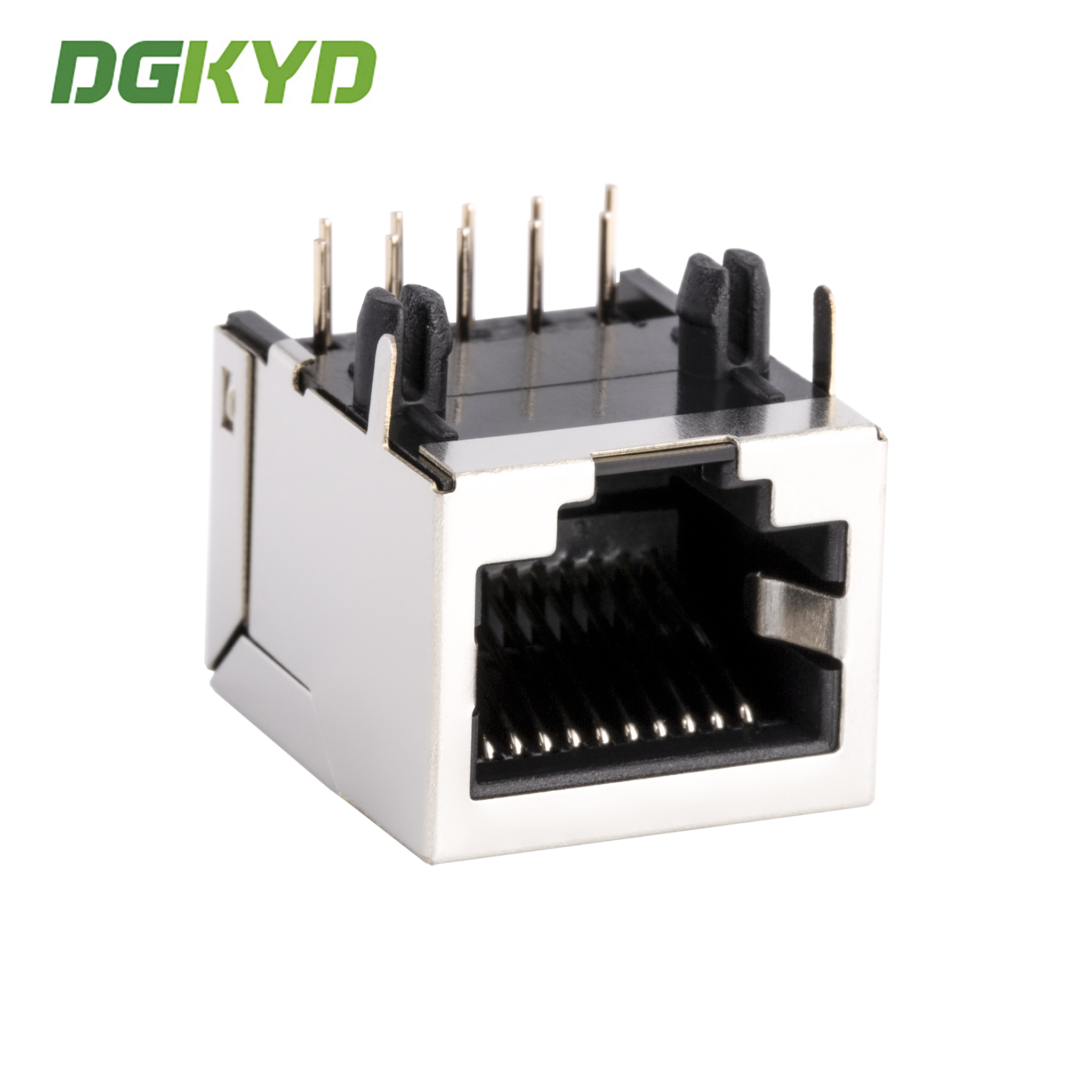

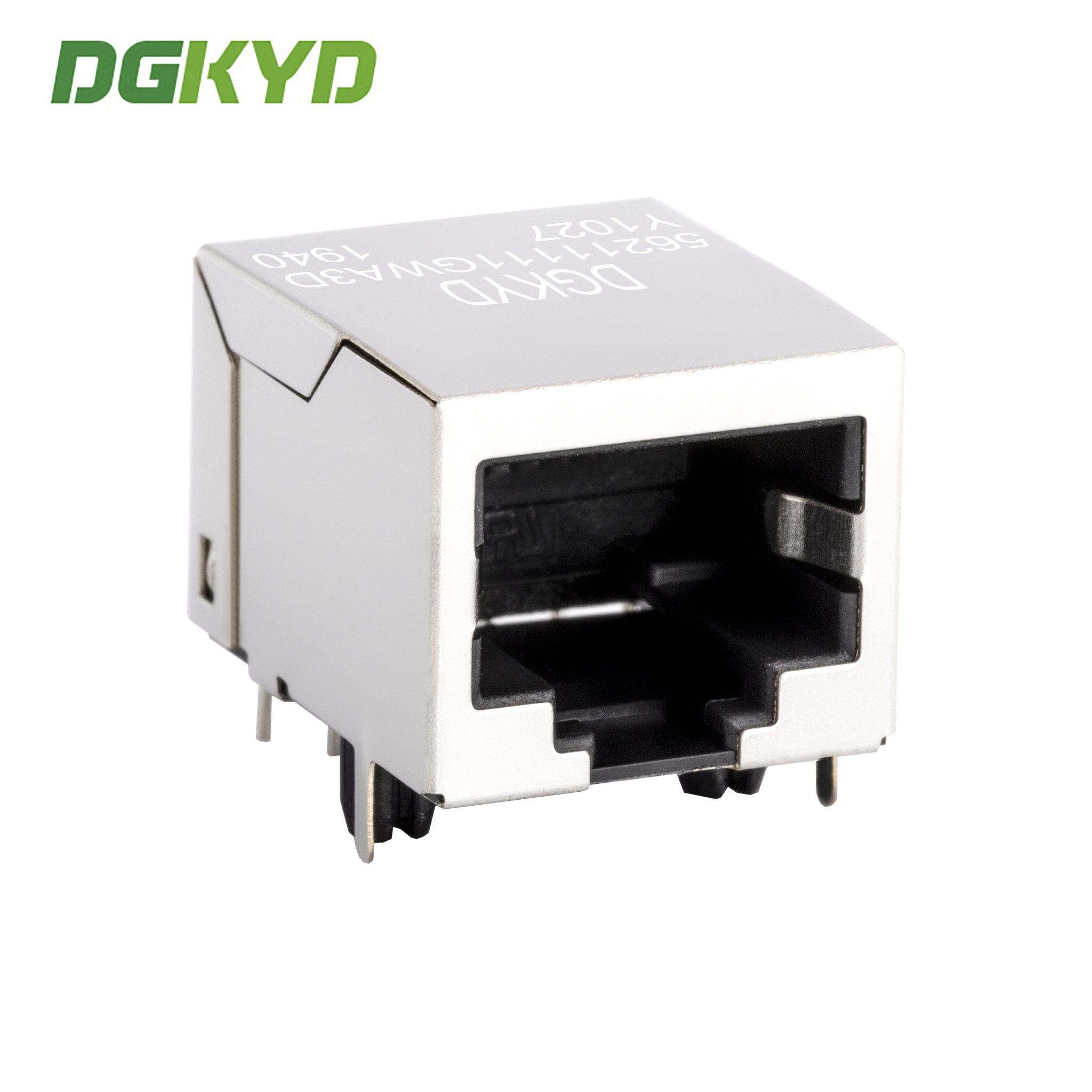

Single port RJ45 female socket interface without light strip shielding and transformer shield 10 pins 10 contacts rj 45 LAN jack connector DGKYD56211111GWA3DY1027

Количество мин заказа :	1 кусок	Цена :	Please contact us to get the latest price.
Упаковывая детали :	Поднос в картонной картоне	Время доставки :	10 дней
Условия оплаты :	T/T, D/P, D/A, L/C, Western Union, Moneygram	Поставка способности :	100 тыс. ПК/день

Место происхождения:	Дунгуань Китая	Фирменное наименование:	DGKYD
Сертификация:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Номер модели:	DGKYD56211111GWA3DY1027

Подробная информация
Категория:	Модульный поднимает домкратом	Тип компонента:	PCB Jack
Тип:	RJ45	Магнитный:	Никто
Категория производительности:	кот 3 5	Тип Insetion:	Бортовой вход
Стиль держателя:	ОКУНАТЬ	ОЭМ/ОДМ:	да
Количество позиций/контактов:	10p10c (RJ45, Ethernet)	Золотое покрытие на контактных булавках:	G/Fu
Температура хранения:	-40 ° C ~+85 ° C.	Рабочая температура:	-40 ° C ~+85 ° C.
Выделить:	RJ45 female socket connector 10 pins , 56 Series LAN jack without light strip , RJ45 shielded connector 10 contacts

Характер продукции

Single Port RJ45 Female Socket Interface

Without light strip shielding and transformer shield, 10 pins 10 contacts RJ45 LAN jack connector DGKYD56211111GWA3DY1027

Product Drawing

Single port RJ45 female socket interface without light strip shielding and transformer shield 10 pins 10 contacts RJ45 LAN jack connector DGKYD56211111GWA3DY1027

Parameters

Part Number	DGKYD56211111GWA3DY1027	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	10
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold G/Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PA46 Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our Strengths

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks.
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED), Shield with EMI fingers or not, coil ratio of magnetic core, magnetics circuit diversification optional, contact gold plating (FU, 3U, 6U, 15u, 30U, 50U), plastic housing material (PBT,PA46,PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
